Description
Digital Portable Radio with Display and Limited Keypad

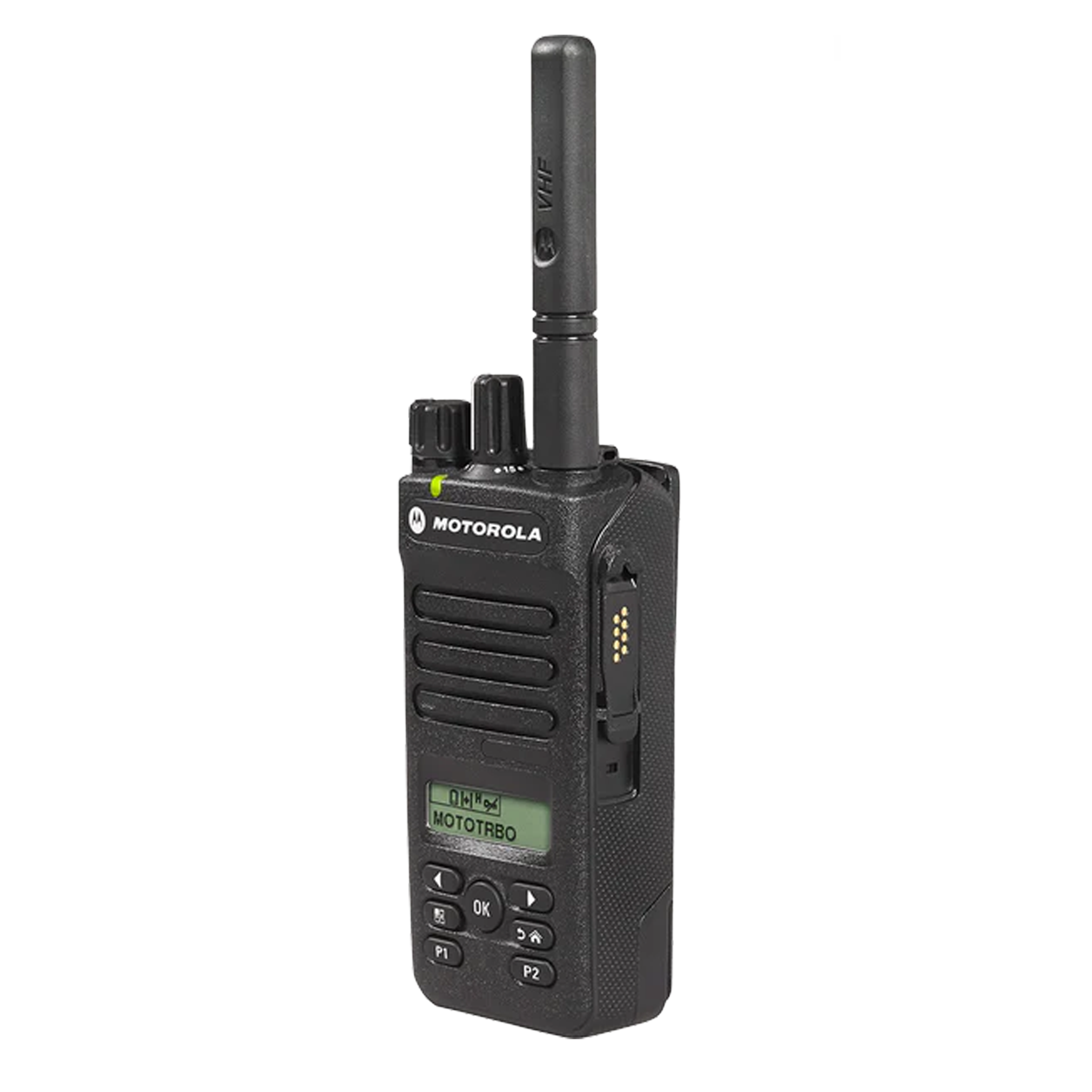

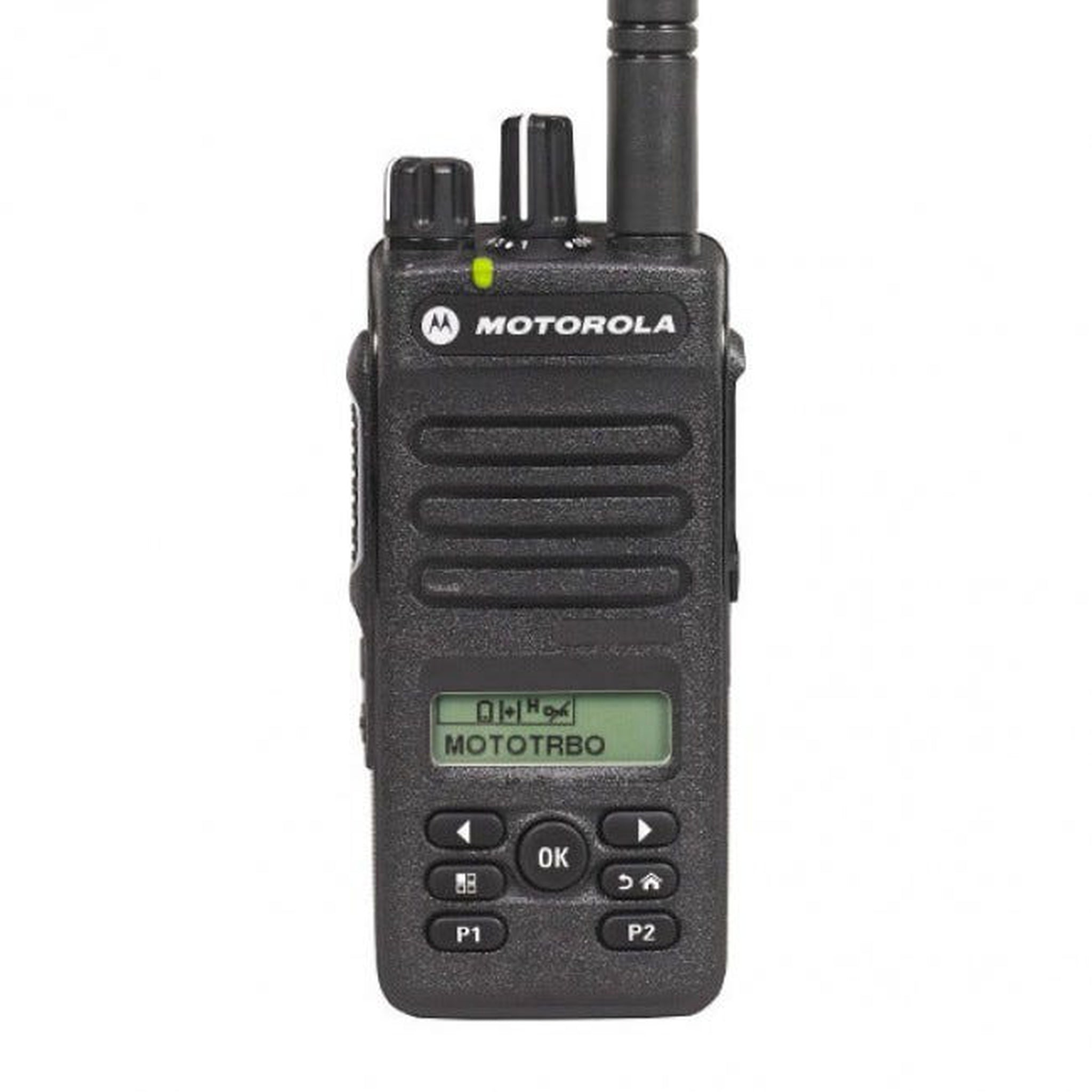

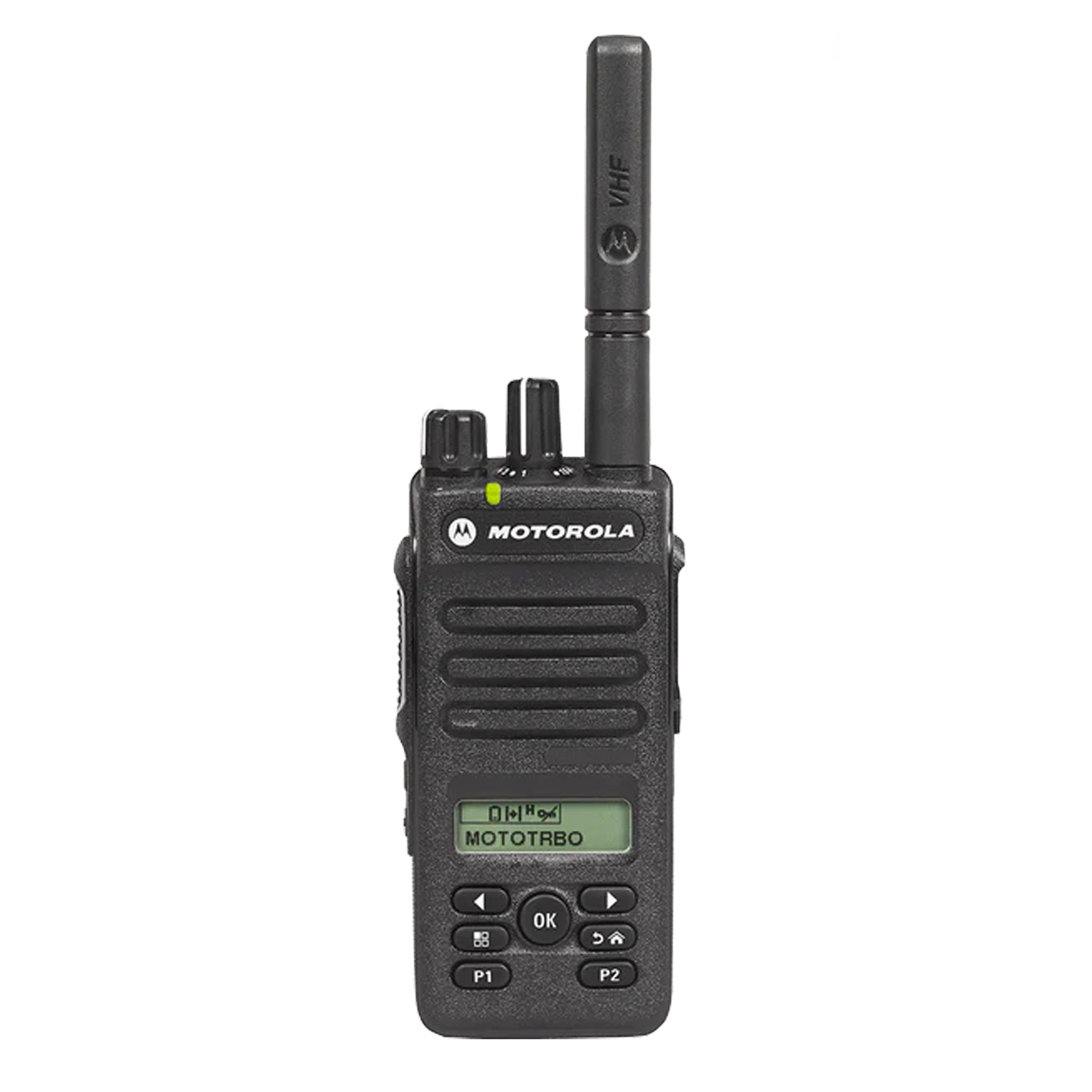

The Motorola MOTOTRBO XPR3500e combines push-to-talk voice communication with an alphanumeric display, limited keypad and 128 channels. View channel names and caller information, navigate programmed menus and use supported text-messaging functions without moving to a full-keypad radio.
Choose UHF or VHF and a Standard or Intrinsically Safe package to match your installation. Analog and DMR digital operation support a planned migration from an existing analog fleet, provided frequencies, signaling and system settings are configured to match. Useful for manufacturing, facilities, hospitality and marine-support teams, the XPR3500e offers IP67 protection and noise-cancellation features without guaranteeing coverage or intelligibility in every environment.
Key Features
-
Display and limited keypad: Channel names, caller identification and supported messaging functions in a 128-channel radio.
-
Analog and digital: Conventional voice operation with supported MOTOTRBO system options subject to configuration and feature entitlement.
-
Audio tools: Intelligent Audio, IMPRES Audio and SINC+ noise cancellation are identified in the manufacturer datasheet.
-
Wi-Fi capability: Remote software-update capability requires applicable activation, firmware and management infrastructure.
-
Bluetooth audio: The family datasheet lists Bluetooth 4.0 but explicitly requires checking availability; confirm the supplied radio's enabled functionality.
-
IP67 protection: Datasheet test condition is 1 meter of water for 30 minutes, not unlimited waterproof use.
-
HazLoc package choices: Approval depends on the properly equipped radio and approved battery/accessory combination.
Specifications
| Attribute |
Details |
| Brand / model |
Motorola MOTOTRBO XPR3500e |
| Controls |
Monochrome alphanumeric display and limited keypad |
| Channel capacity |
128 |
| VHF range |
136–174 MHz |
| UHF range |
Existing listing: 403–512 MHz; linked manufacturer family datasheet: 403–527 MHz. Confirm the ordered unit's supported range before purchase. |
| High transmit power |
5W VHF / 4W UHF |
| Low transmit power |
1W |
| Modes |
Analog and DMR digital |
| Ingress protection |
IP67; 1 meter for 30 minutes under the datasheet test conditions |
| Dimensions with standard battery |
122 × 56 × 36 mm |
| Weight with standard battery |
281 g |
| Nominal power supply |
7.5V |
| Wi-Fi |
Integrated capability; applicable activation and setup required |
| Bluetooth |
Family datasheet lists version 4.0, with availability to be confirmed |
| Safety options |
Standard or Intrinsically Safe package; verify the exact approved configuration |
Battery Runtime Reference
The manufacturer datasheet gives the following typical results at a 5/5/90 transmit/receive/standby profile, maximum transmit power, with Wi-Fi and applications disabled. These are reference batteries, not the PMNN4544A or PMNN4490D included with the packages below; these runtimes are not claimed for either included battery.
| Reference Battery |
VHF Digital / Analog |
UHF Digital / Analog |
| Slim 1600mAh |
16 / 11.5 hours |
15 / 11.5 hours |
| High-capacity 3000mAh |
28.5 / 21 hours |
27.5 / 21 hours |
Actual runtime varies with the supplied battery, enabled features, radio use, temperature and battery condition. The earlier blanket 21-hour digital / 16-hour analog claim is not used as a package guarantee.
Model Variations
| Frequency |
Package |
Ordering SKU |
| UHF |
Standard |
AAH02RDH9VA1AN |
| UHF |
Intrinsically Safe |
AAH02RDH9VA1AN-UL |
| VHF |
Standard |
AAH02JDH9VA1AN |
| VHF |
Intrinsically Safe |
AAH02JDH9VA1AN-UL |
The -UL suffix identifies the store's package selection. Confirm the radio approval label, approved battery and permitted accessories for the intended hazardous location. A UL-rated battery alone does not make a Standard radio intrinsically safe.
What's Included
| Item |
Status |
Details |
| XPR3500e radio |
Included |
Selected frequency and safety package |
| IMPRES Li-Ion battery |
Included |
One battery: PMNN4544A for the Standard package or PMNN4490D for the Intrinsically Safe package; not both |
| IMPRES 2 single-unit charging kit |
Included |
PMPN4576A: PMPN4527A charger base with 25009297001 US power supply
|
| Frequency-specific antenna |
Included |
Match antenna range to operating channels |
| 2-inch spring-action belt clip |
Included |
PMLN4651, as identified in the existing package listing |
| Accessory port dust cover |
Included |
Motorola 0104058J40 |
| Optional feature licenses and programming |
Confirm separately |
Not assumed included with every radio package |
Recommended Accessories and Services
-
Atlantic Radio Programming Services: Choose the appropriate conventional configuration service; confirm scope for more channels or specialized systems.
-
Motorola HKVN4381A: Wi-Fi activation option for supported XPR3500e radios. Confirm current entitlement and firmware before ordering.
-
Motorola PMNN4490D: Battery option listed for XPR3500e; use only within the appropriate approved HazLoc configuration.
-
Motorola PMNN4544A: Listed 2450mAh standard battery option, not an intrinsically safe substitute.
-
Motorola PMAE4079A: Listed UHF antenna option. A GPS-capable antenna does not add GPS to the radio.
-
Motorola PMAD4120: VHF stubby option for 146–160 MHz, not the entire VHF radio band; does not add GPS functionality.
-
Motorola XPR3300e: Related non-display, 16-channel model for users who do not need the screen and limited keypad.
Frequently Asked Questions
How does XPR3500e differ from XPR3300e?
XPR3500e has an alphanumeric display, limited keypad and 128 channels. XPR3300e is a non-display, no-keypad model with 16 channels.
Can it communicate with existing analog radios?
Yes, in a compatible analog configuration. Radios must share the operating band, frequencies and appropriate signaling settings. DMR operation likewise requires matching system parameters; the model name alone does not establish interoperability.
Is Wi-Fi active out of the box?
Do not assume it is. The existing listing identifies HKVN4381A activation for Wi-Fi capability. Confirm the ordered radio's entitlement, firmware and management setup. Wi-Fi for maintenance does not turn the radio into a Wi-Fi push-to-talk device.
Does every unit include working Bluetooth?
The manufacturer family datasheet lists Bluetooth 4.0 audio but specifically asks customers to check availability. Confirm functionality on the exact supplied unit before buying wireless accessories. Bluetooth alone does not establish VOX or automatic transmission.
Can I read and send text messages?
The display supports text functions, and the datasheet identifies canned text messaging. Available functions depend on programming and system support. The limited keypad is not a full alphanumeric keyboard for unrestricted text entry.
How long does the battery last?
Use the battery-specific runtime table as a reference, not a guarantee for the included pack. Frequent transmitting, wireless features, temperature and battery aging affect actual operation.
What does the IP67 rating mean here?
The datasheet specifies dust and water protection tested at 1 meter for 30 minutes. This does not guarantee unlimited immersion, saltwater resistance or protection with damaged seals or improperly fitted accessories.
What is required for the Intrinsically Safe option?
Use the correctly approved radio, approved battery and permitted accessories as a complete configuration. Verify the approval label and instructions against the intended location; selecting a package or attaching a battery does not establish suitability for every hazardous environment.
How is the radio programmed?
For self-programming, use the Motorola PMKN4115B programming cable with Motorola MOTOTRBO CPS 2.0 software (HKVN4362A). Confirm the software version is suitable for your radio's firmware; the cable and software are separate purchases. Alternatively, choose Atlantic Radio Programming Services. Standard conventional service covers up to 16 channels, so confirm scope for larger configurations, trunking or other specialized systems.
Can an antenna add GPS?
No. A combination antenna does not create GPS capability in a radio that lacks it. Choose antennas for the radio's operating frequencies and approved accessory configuration.
More Resources
Warranty and Service Coverage
The existing package lists 5-year Essential Repair coverage. Confirm the included service entitlement and applicable terms with the selected radio package. This is not a claim that every battery, charger or accessory carries a five-year warranty, or that all damage is covered.
