Description
Icom CP23L
12V DC Cigarette Lighter Cable for Rapid Chargers
High-Performance Vehicle Power Solution for Icom Desktop Charging Bases

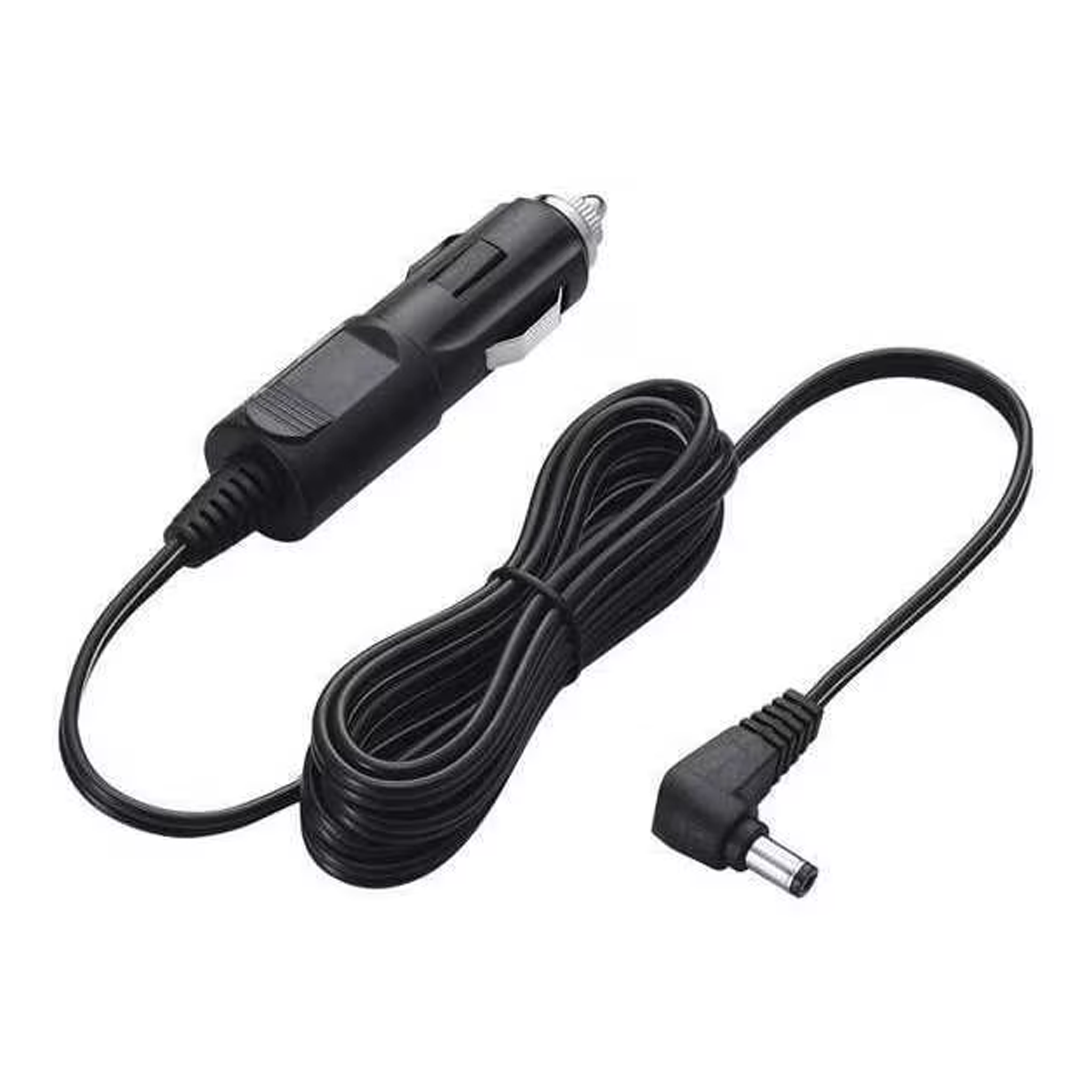

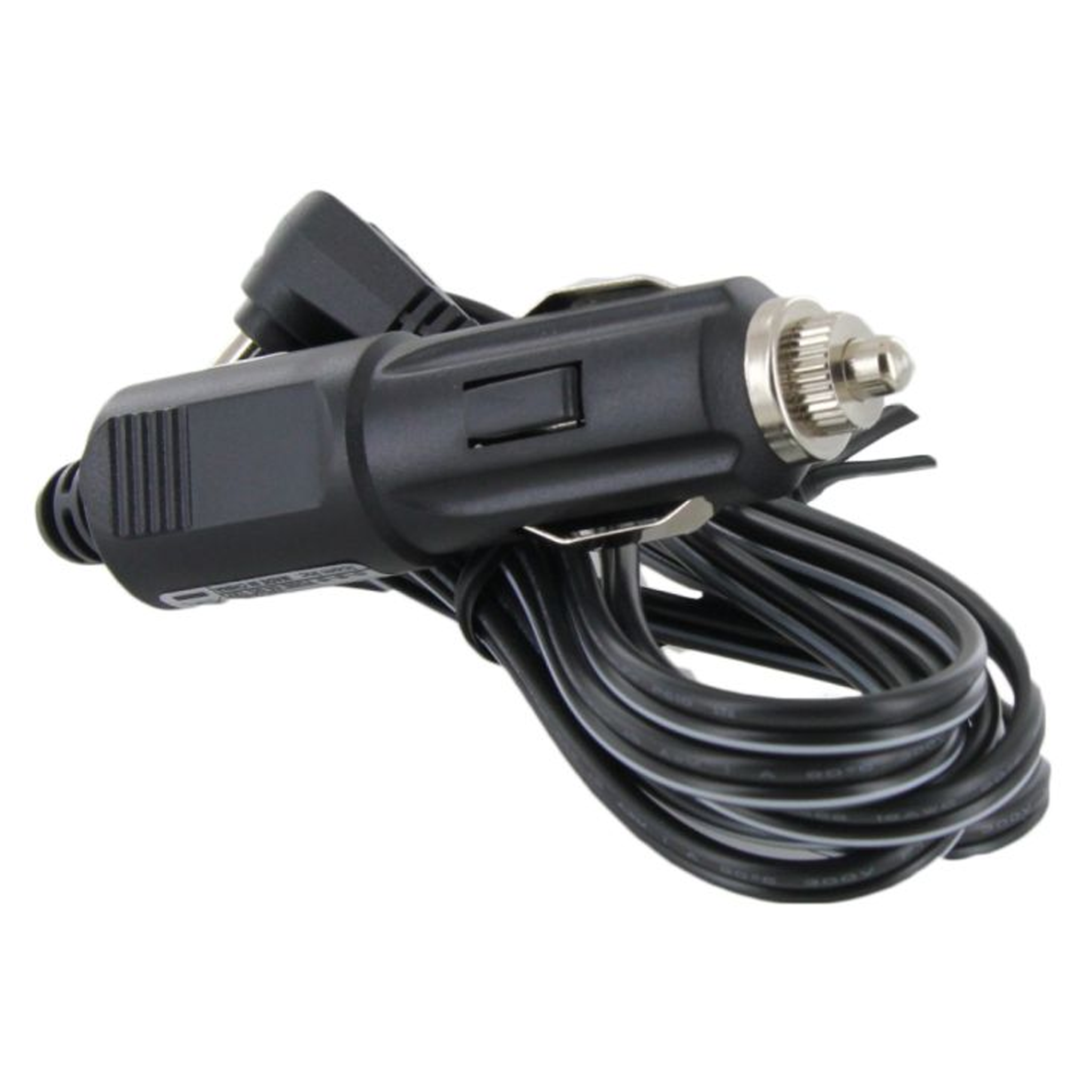

The Icom CP23L is a heavy-duty, 12V DC power cable designed to interface between a standard vehicle cigarette lighter socket and various Icom rapid-charging desktop bases. Measuring 1.8 meters (6 feet) in length, this cable provides the "Operations Critical" flexibility needed for mobile professionals—such as search and rescue teams, maritime security, and field technicians—who must maintain radio power while on the move. By utilizing the vehicle's power system, the CP23L ensures your handheld units are fully charged and ready for deployment the moment you exit the vehicle.
Engineered for safety and durability, the Icom CP23L features a standard EIA "S" 2.1mm internal / 5.5mm external female connector, precision-molded to provide a secure, vibration-resistant fit with Icom charging cradles. The internal 4.0 A fuse provides an essential layer of protection, safeguarding both your expensive radio equipment and the vehicle's electrical system from potential surges or short circuits. With a wide input tolerance of 12V to 16V, the cable maintains consistent power delivery even during engine starts or varying alternator outputs.
Key Features & Benefits
-
Mobile Power Efficiency: Enables rapid charging of handheld radios directly from any standard 12V vehicle accessory port.
-
1.8-Meter (6ft) Reach: Provides ample length for routing cables through vehicle consoles, glove boxes, or dashboard mounts.
-
Integrated 4A Safety Fuse: Protects sensitive radio circuitry and internal charging components from electrical overloads.
-
Universal Icom Interface: Compatible with a wide array of desktop rapid-charging bases, including the BC119NS and BC160.
-
Ruggedized Connector: Features a heavy-duty EIA "S" plug designed to withstand thousands of insertion cycles.
Specifications
-
Brand: Icom
-
Part Number: CP23L (CP-23L)
-
Input Voltage: 12 V - 16 V DC
-
Output Current: 4.0 A Max
-
Cable Length: 1.8 m (6.0 ft)
-
Plug Dimensions: Outer Φ 5.5 mm / Inner Φ 2.1 mm
-
Connector Type: EIA “S” Female and Standard Cigarette Plug
-
Fuse Protection: 4 A Internal Fuse
Charging Base Compatibility
|
|
|
|
| BC119NS |
BC160 |
BC193 |
BC210 |
| BC213 |
BC220 |
|
|
Radio Compatibility
|
|
|
|
| A16 |
F1000 |
F1100D |
F2000 |
| F2100D |
F3003 |
F3033 |
F3210D |
| F3230D |
F3263D |
F3400D |
F4003 |
| F4033 |
F4210D |
F4230D |
F4263D |
| F4400D |
F52D |
F62D |
F7010 |
| F7020 |
F7040 |
G86 |
G88 |
| ID-52A |
IP501H |
IP503H |
IP730D |
| IP740D |
M85 |
M88 |
T10 |
| U86 |
U88 |
V80 |
V80E |
| V86 |
V88 |
|
|
What's Included
- Icom CP23L Cigarette Lighter Cable (1.8m)
Frequently Asked Questions
-
Can I plug this directly into my radio? No, the CP23L is designed to power the desktop charging base, not the radio's side accessory port.
-
Is this compatible with 24V trucks? No. The input range is 12V-16V. Using this in a 24V system will blow the fuse and potentially damage the equipment.
-
Can the fuse be replaced? Yes, the cigarette lighter plug features a user-replaceable 4A fuse.
Warranty
1-year manufacturer's warranty
