Description

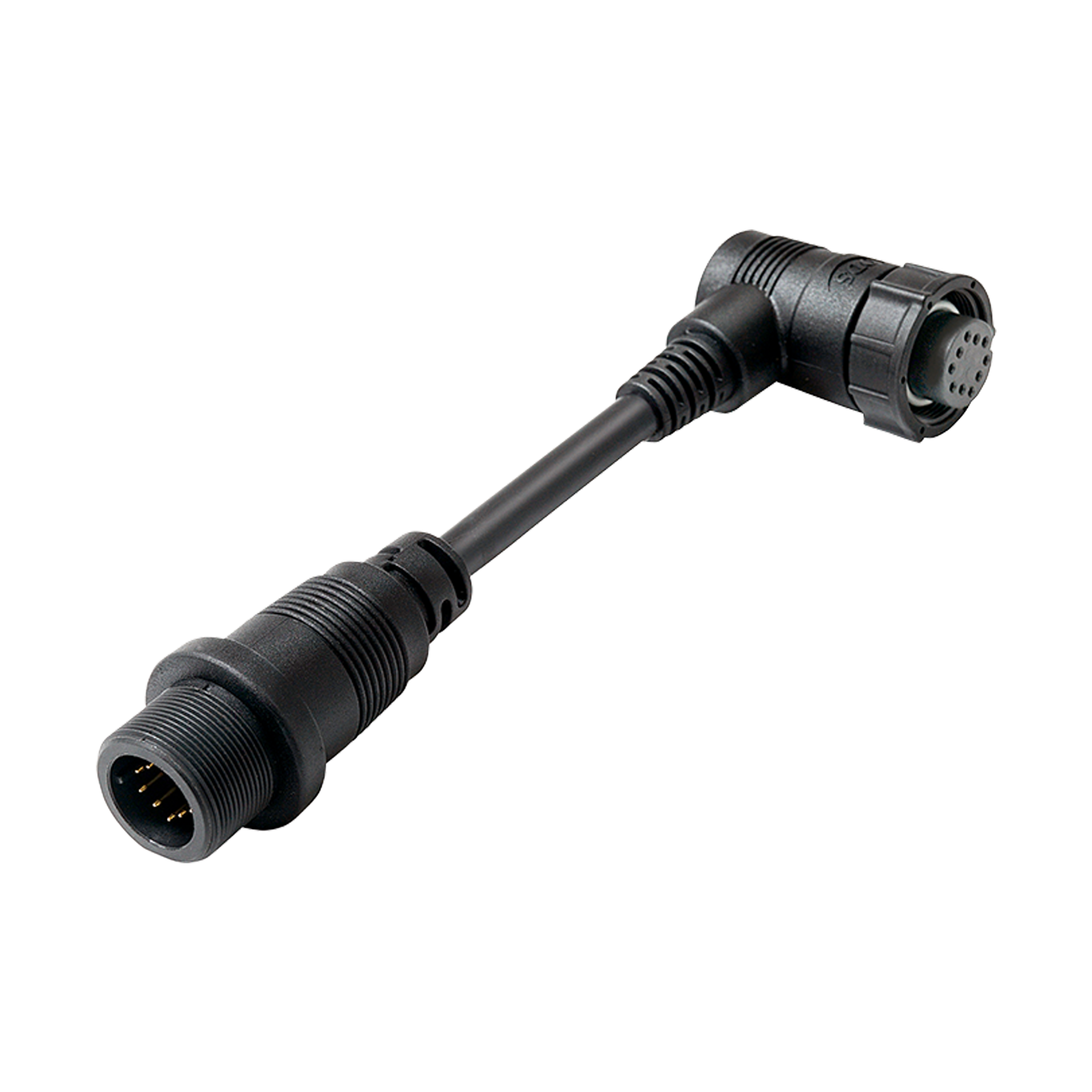

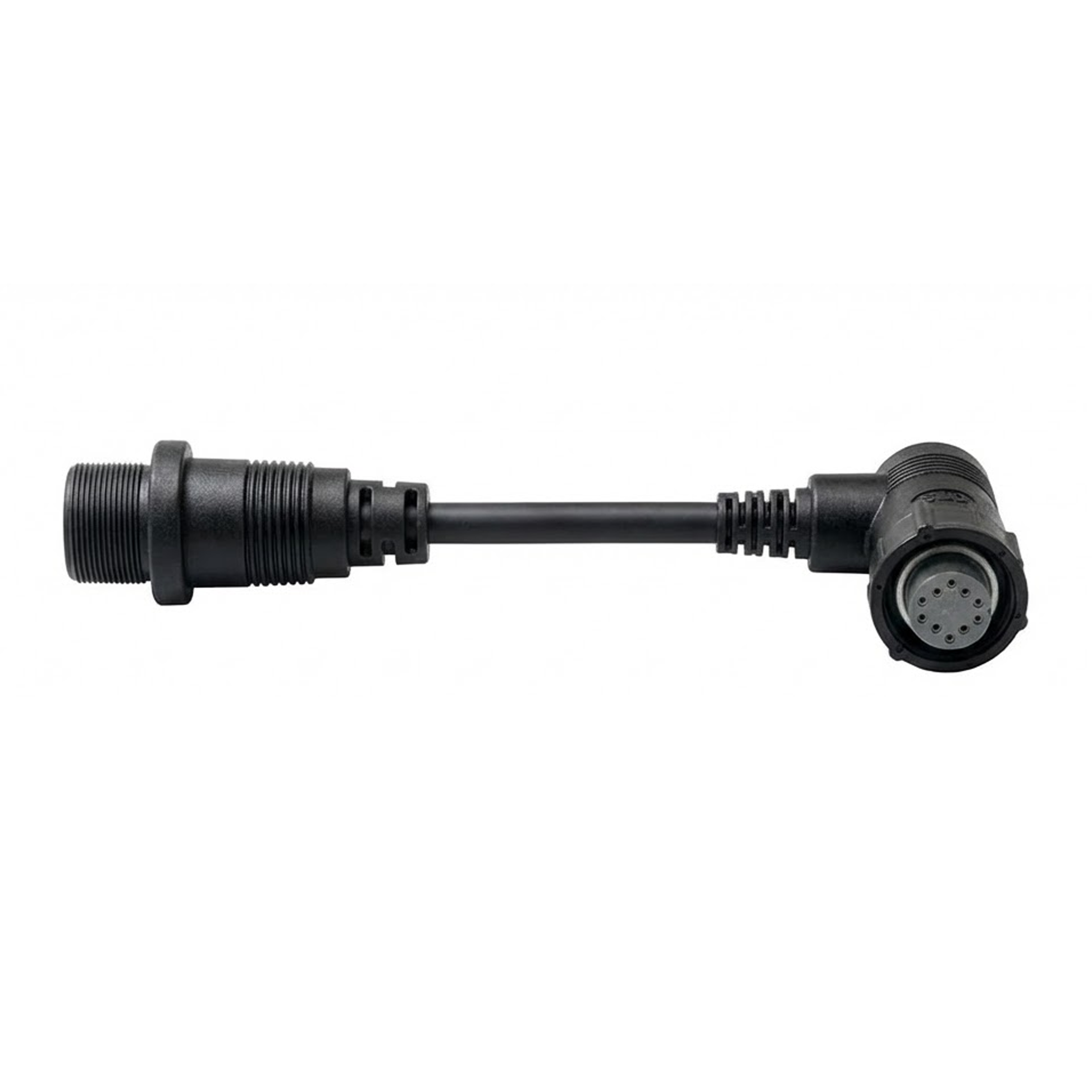

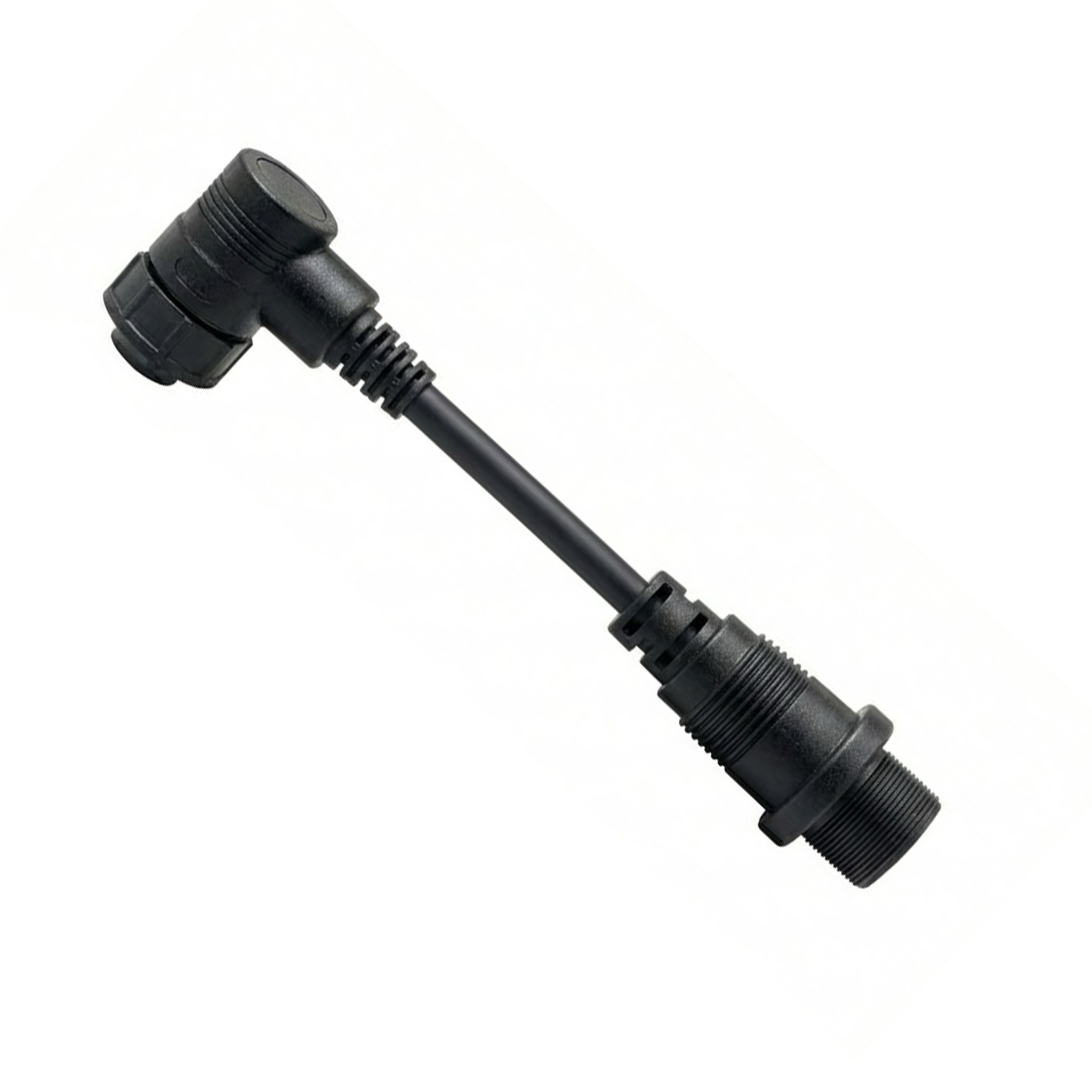

Icom OPC2523L 12 L-Type (90-Degree) Conversion Adapter Cable for HM-195 CommandMic
150mm 10-pin to 10-pin right-angle adapter cable for clean, low-profile HM-195 CommandMic installations on Icom marine transceivers.
The Icom OPC2523L 12 is a precision 90-degree L-type conversion adapter cable designed to solve cable management challenges in confined marine helm and electronics cabinet installations. Standard straight connectors often require significant clearance and are susceptible to stress-induced damage in tight spaces. The OPC2523L 12 redirects the cable at a right angle, allowing for low-profile installations and significantly reducing physical strain on the transceiver’s accessory port and the microphone connector.
Measuring 150mm (5.9 inches) in length, it provides a reliable bridge between the HM-195 series CommandMic™ and compatible transceivers. It is an essential accessory for black-box radio systems and flush-mount setups where straight-plug clearance is unavailable.
Key Features & Benefits
90-Degree L-Type Design: Right-angle connection for cleaner wiring and easier installation in confined dashboard spaces.
10-Pin to 10-Pin Interface: Engineered for seamless integration between the HM-195 series CommandMic and compatible transceivers.
Compact 150mm Length: Improves cable routing without adding unnecessary clutter to the electronics area.
Reduced Connector Strain: Prevents kinking and bending associated with straight cables, extending the lifespan of the connector and port.
Marine-Grade Construction: Built to withstand the vibrations and moisture typical of maritime environments.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model / SKU |
OPC2523L 12 |
| Product Type |
L-Type (90-Degree) Conversion Adapter Cable |
| Connector Type |
10-Pin to 10-Pin |
| Cable Length |
150mm (5.9 in) |
| Design |
90-Degree Right Angle |
| Country of Origin |
Japan |
Compatibility
| Model |
Type |
| M410BB |
Black Box Marine VHF Transceiver |
| M424G |
Fixed Mount Marine VHF Transceiver |
| M510 EVO |
Fixed Mount Marine VHF Transceiver |
| M510BB |
Black Box Marine VHF Transceiver with AIS |
| M605 |
Fixed Mount Marine VHF Transceiver |
Recommended Accessories
Warranty
1-year manufacturer’s warranty.
