Description
Digital & Analog Portable Two-Way Radio
64-channel DMR Tier II & analog handheld radio with USB-C charging and 23-hour runtime.

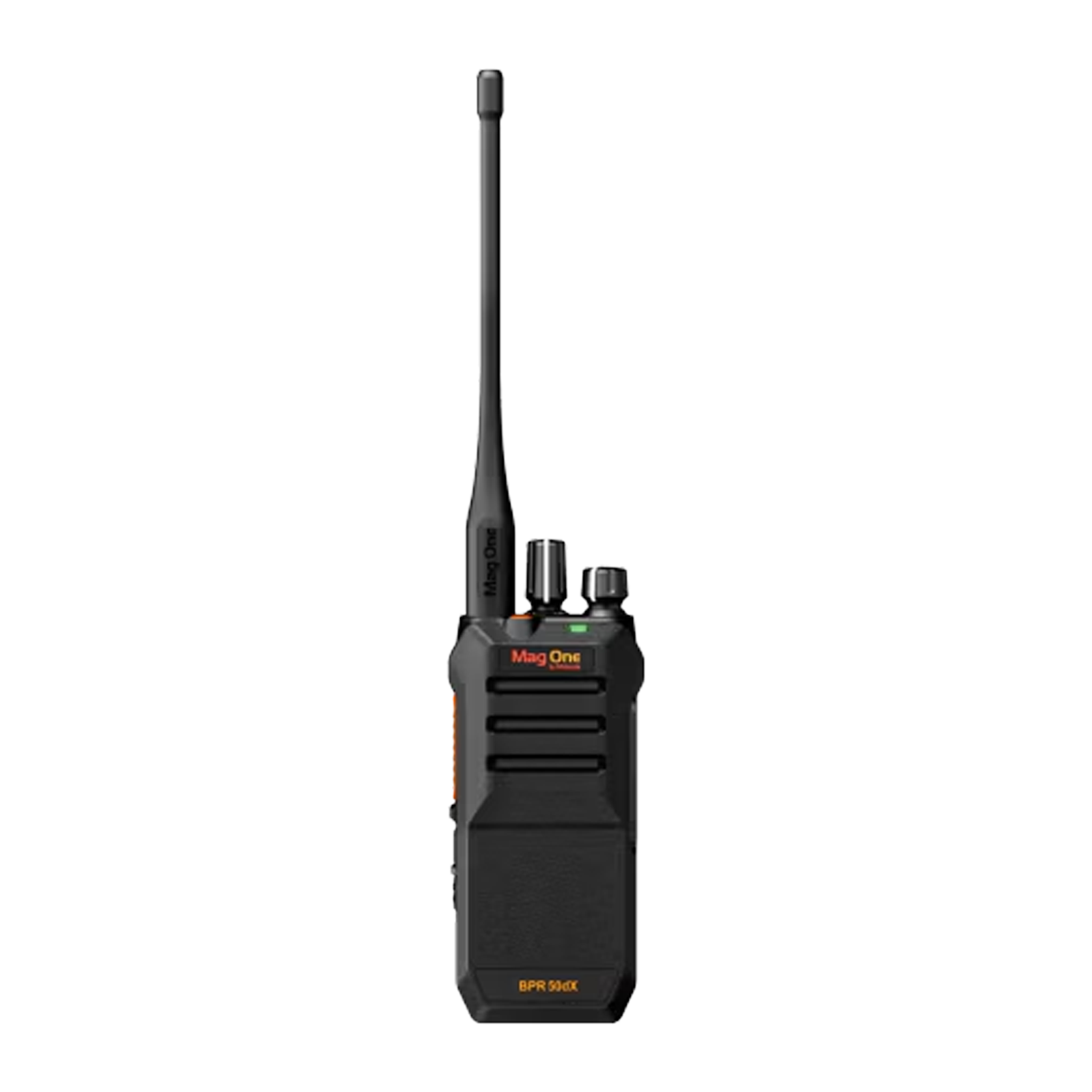

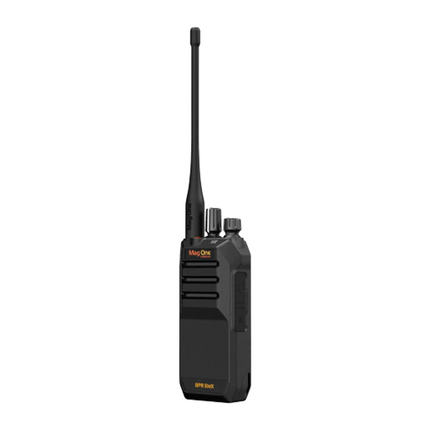

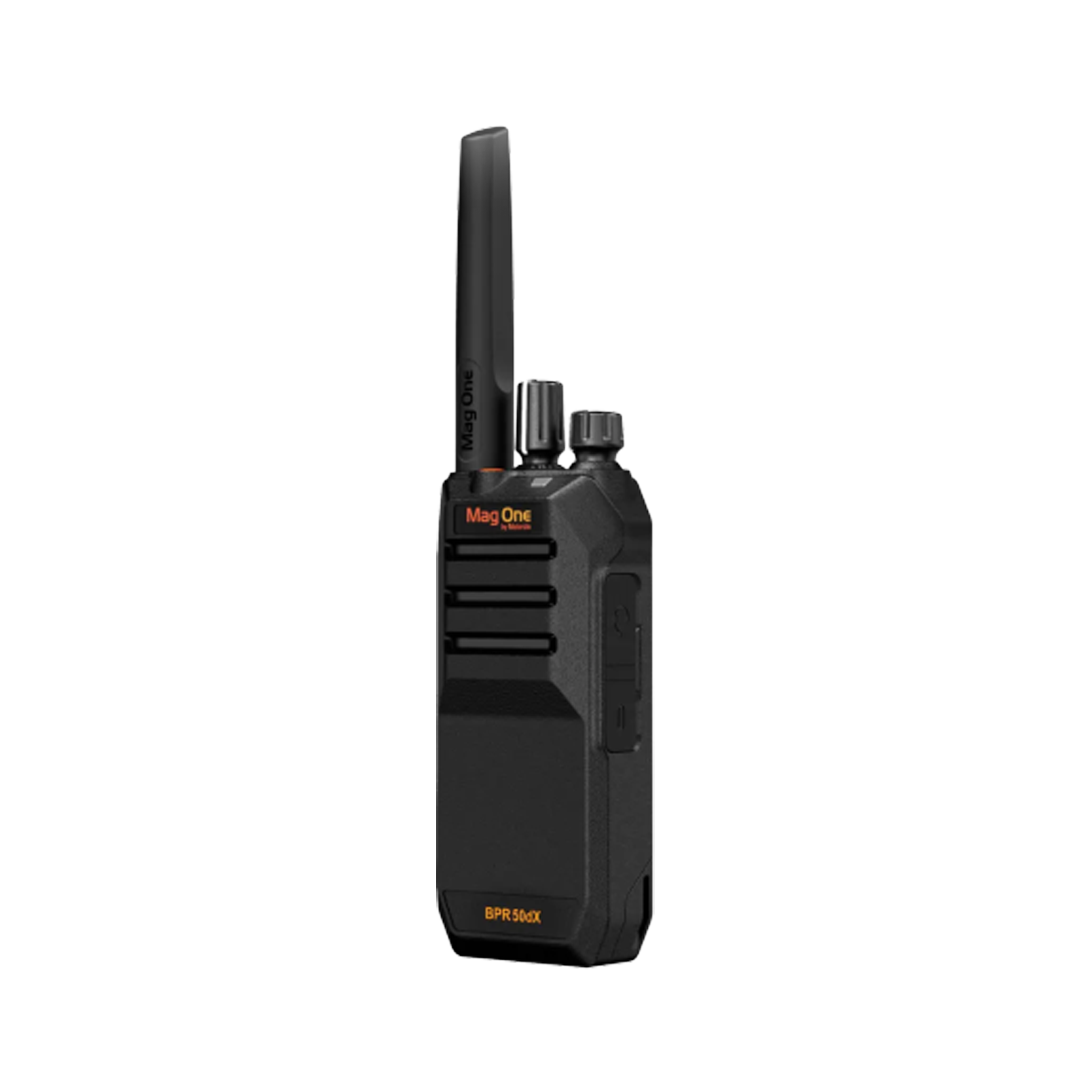

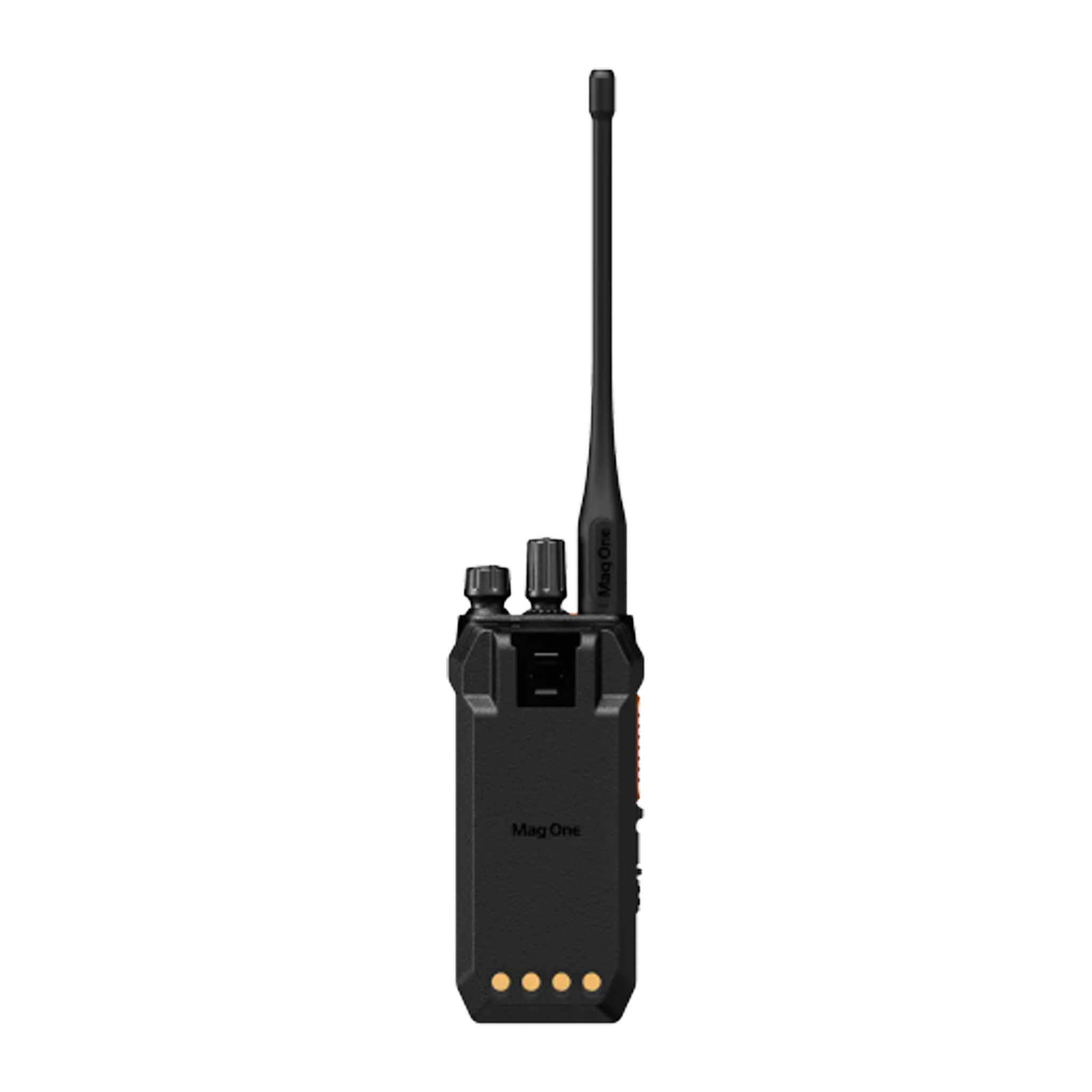

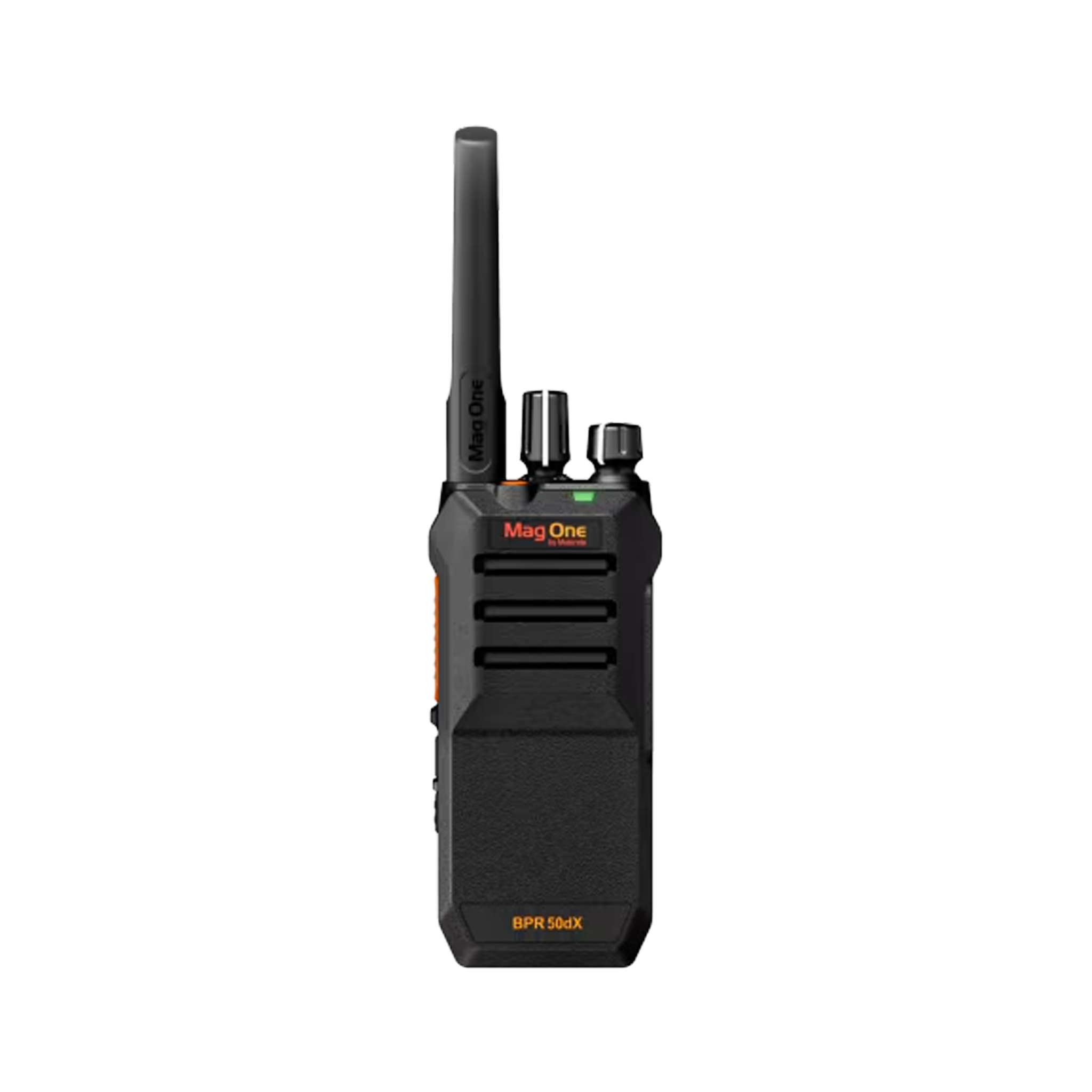

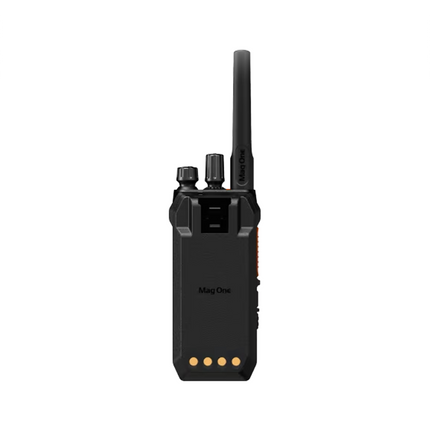

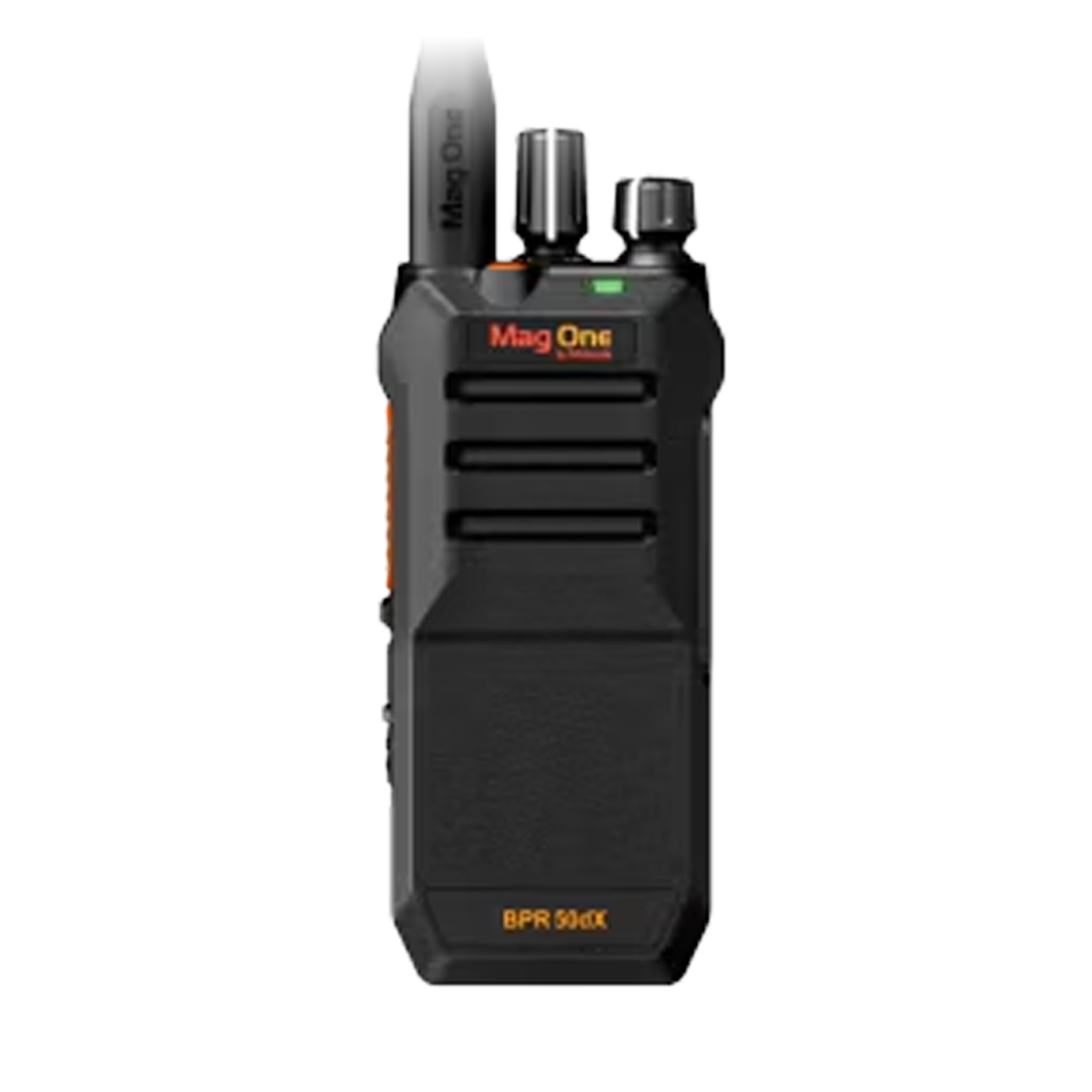

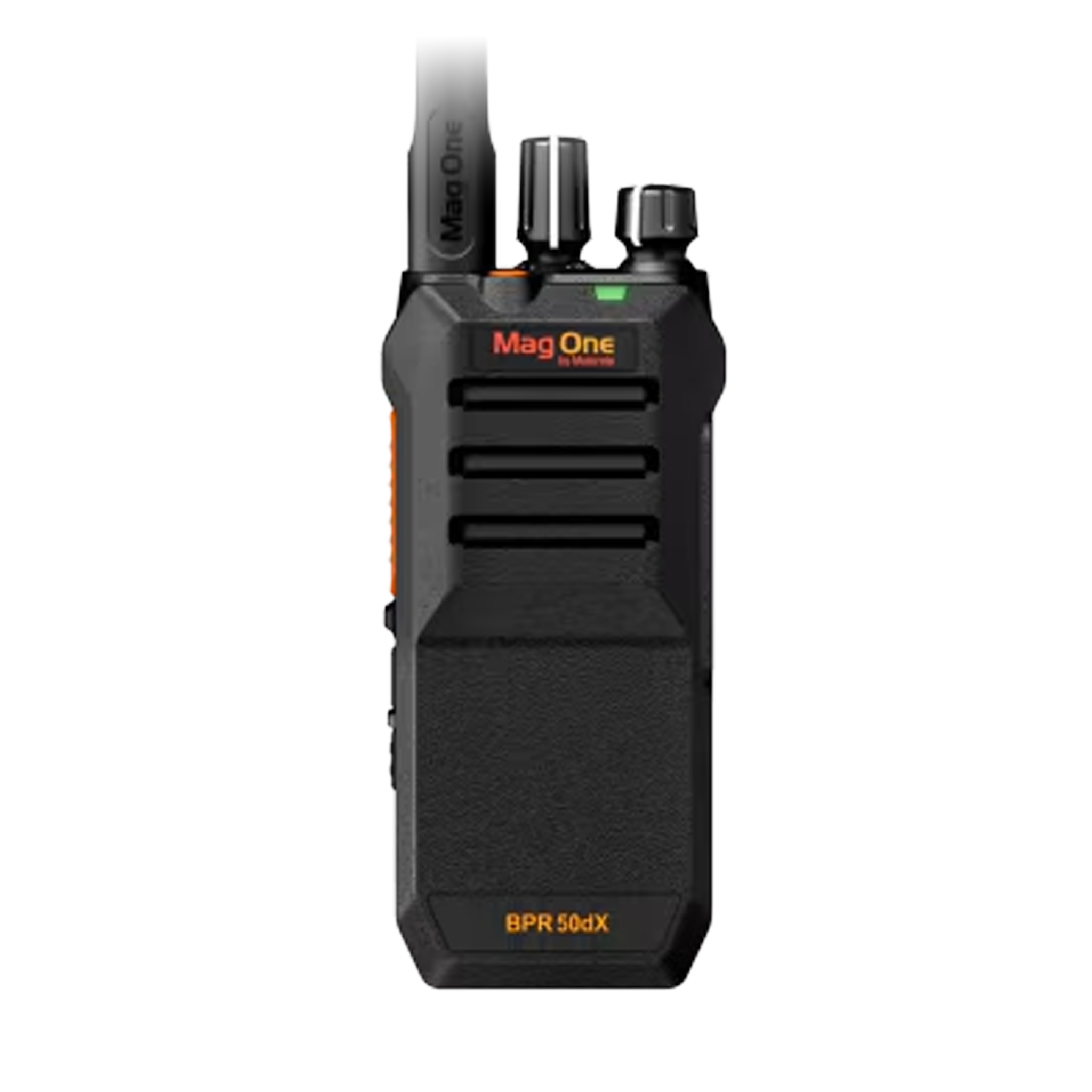

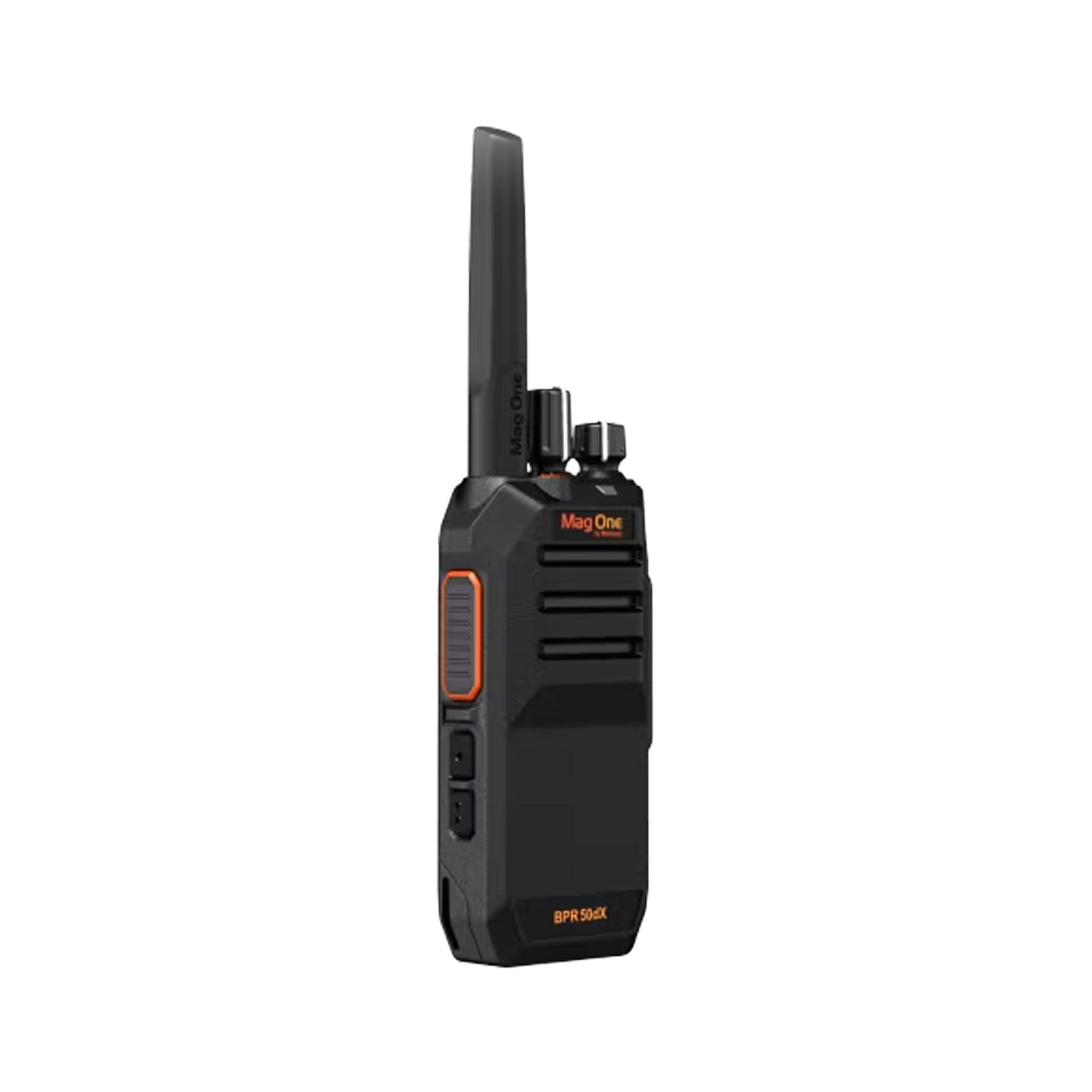

The Motorola Mag One BPR50DX (also designated as BPR50dX) is a versatile, commercial-grade digital and analog portable two-way radio designed to deliver crisp voice communications across active workplace environments. Supporting dual-mode DMR Tier II digital and legacy analog protocols across 64 channels (organized into 4 zones), the Motorola Mag One BPR50DX enables seamless migration from traditional analog fleets to high-clarity digital networks without requiring immediate hardware overhauls.
Engineered for retail stores, hospitality staff, facility management teams, education campuses, and event logistics, the Motorola Mag One BPR50DX combines robust transmission power—up to 5 Watts on VHF (136–174 MHz) and 4 Watts on UHF (400–470 MHz)—with an extended-capacity 2200mAh Li-Ion battery supplying up to 23 hours of digital operation per charge. The transceiver features an integrated USB-C charging and programming port for flexible field powering alongside standard desktop drop-in charging cradles. Built with a powerful 3-watt internal speaker enhanced by transmit and receive noise cancellation filters, the Motorola Mag One BPR50DX ensures voice messages remain audible in loud environments. Worker safety is reinforced through a dedicated top emergency button, Lone Worker monitoring, and remote fleet management capabilities like Radio Check and Remote Disable/Enable.
Key Features & Benefits
-
Dual-Mode DMR Tier II & Analog Operation: Automatically scans and operates across both digital and analog channels, allowing smooth interoperability with existing BPR40 and BPR40d fleets.
-
64 Channel Capacity Across 4 Zones: Manage departmental communications by assigning up to 16 channels per zone for organized talkgroup separation.
-
Extended 23-Hour Battery Life: High-capacity 2200mAh Li-Ion battery pack delivers up to 23 hours of talk time in digital mode and 16 hours in analog mode.
-

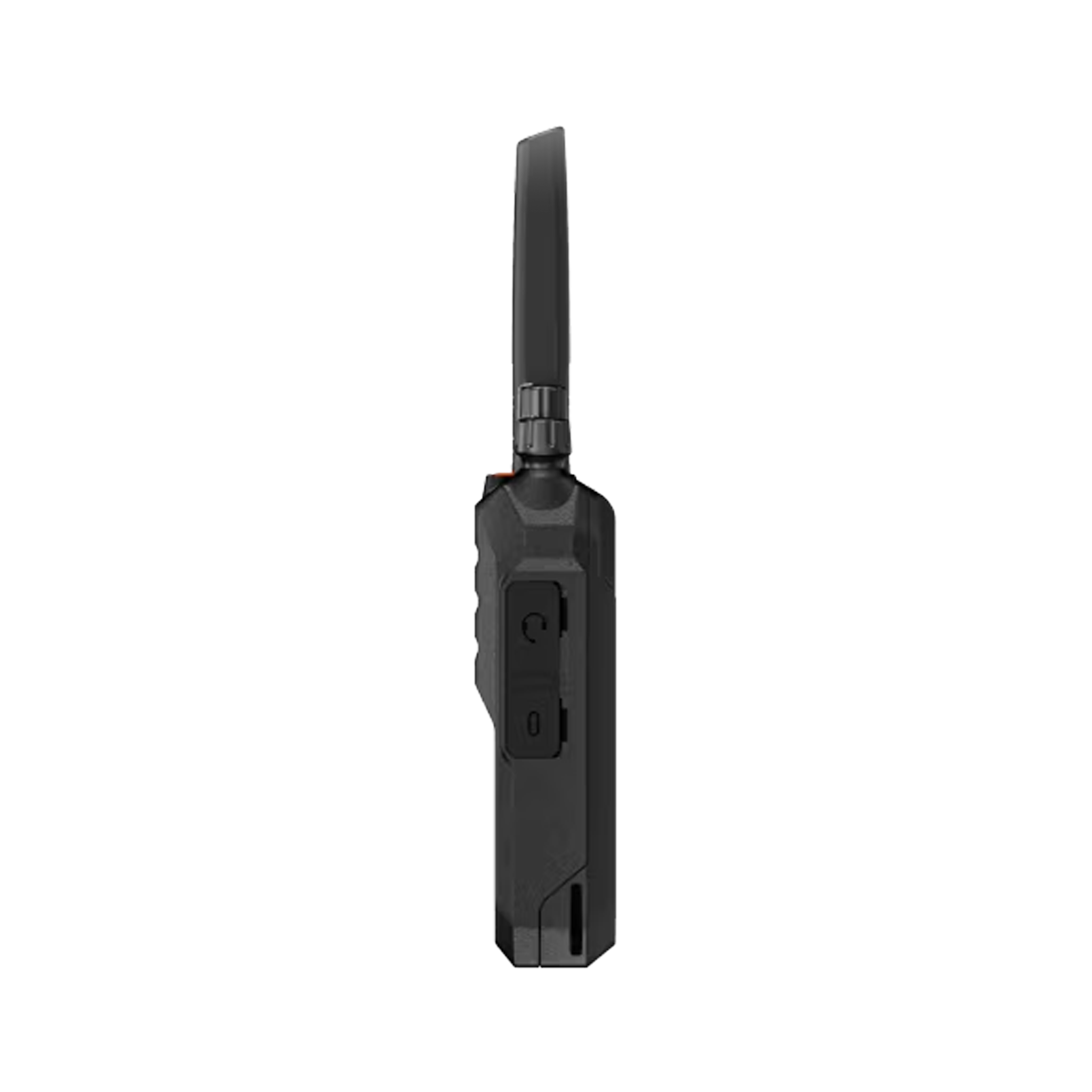

Flexible USB-C & Desktop Charging: Integrated USB-C port allows direct charging with standard USB cables while supporting traditional desktop drop-in charging cradles.
-
Powerful 3W Audio with Noise Cancellation: Heavy-duty 3-watt speaker with active TX/RX noise suppression filters out background ambient noise.
-
IP55 & MIL-STD-810 Heavy-Duty Build: IP55 dust and water resistance rating combined with Military Standard 810 C/D/E/F/G/H durability guards against drops, rain, and shop dust.
-

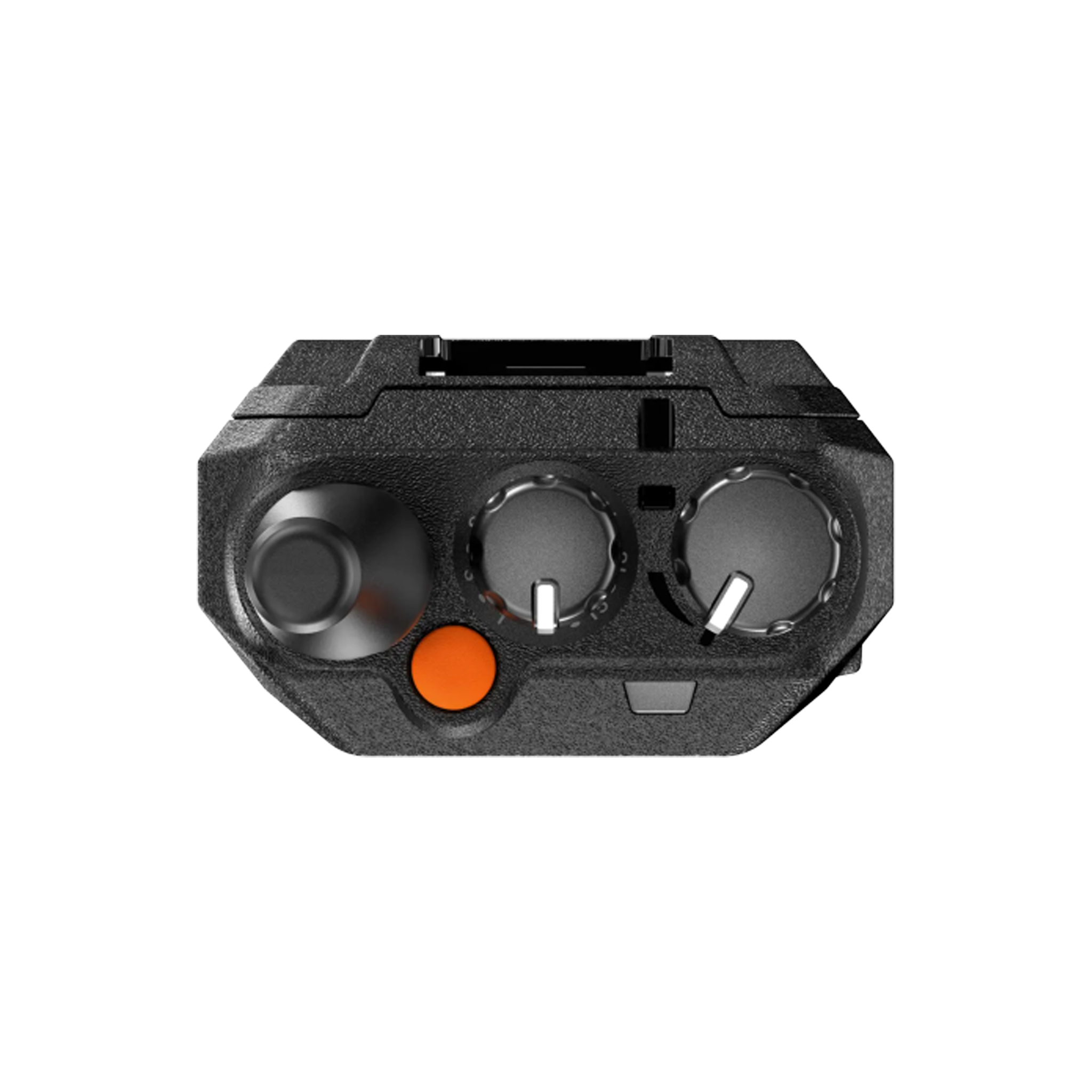

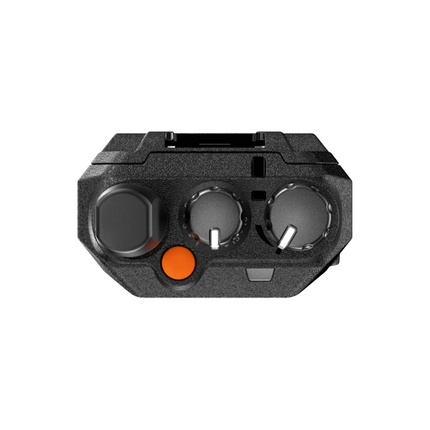

Motorola Mag One BPR50DX Emergency & Lone Worker Features: Top-mounted dedicated emergency button and automated Lone Worker timer alert team members during safety incidents.
-

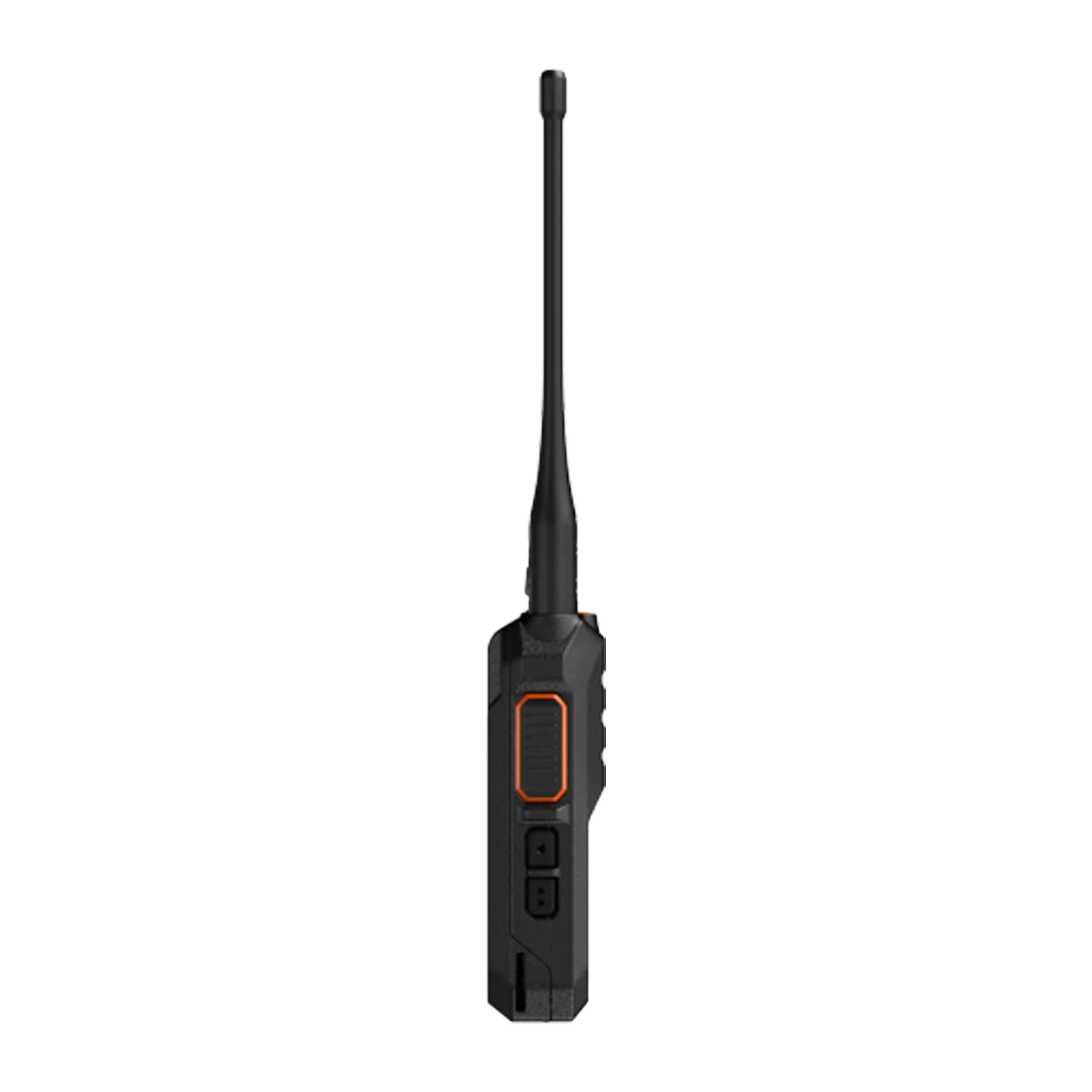

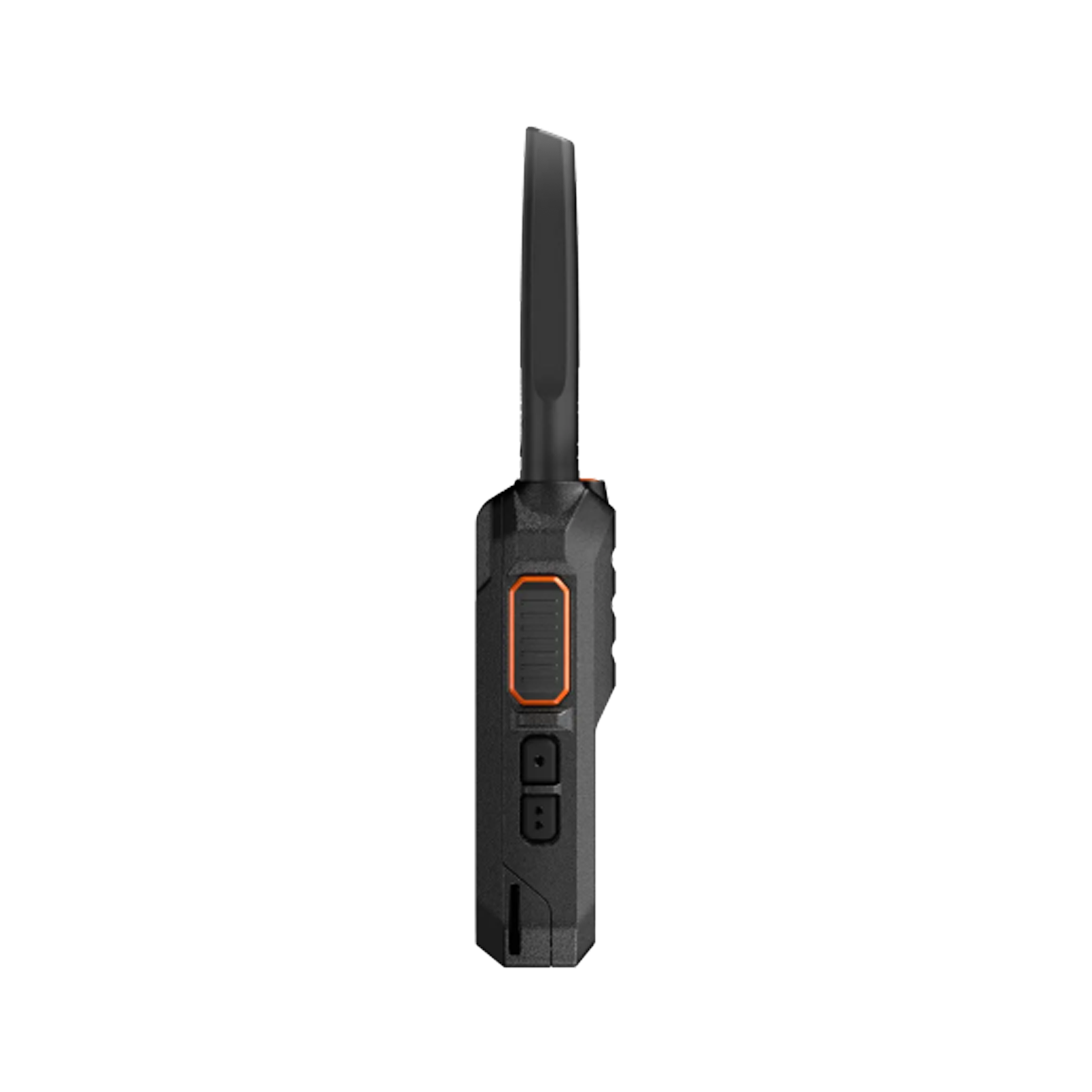

Three Programmable Buttons: Configure quick-access functions such as priority scan, power level, VOX hands-free, or zone toggling across 3 custom buttons.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Series |
Mag One by Motorola |
| Model/SKU |
BPR50DX (BPR50dX) |
| Product Type |
Portable Two-Way Radio |
| Operating Modes |
DMR Tier II Digital & Analog |
| Frequency Bands |
VHF (136–174 MHz) / UHF (400–470 MHz) |
| RF Output Power |
5W (VHF) / 4W (UHF) |
| Channel Capacity |
64 Channels (4 Zones, 16 Channels/Zone) |
| Battery Capacity |
2200 mAh Li-Ion |
| Battery Life |
Up to 23 Hours (Digital) / 16 Hours (Analog) |
| Ingress Protection |
IP55 (Dust & Water Resistant) |
| Military Standard |
MIL-STD-810 C, D, E, F, G, H |
| Audio Output |
3.0 Watts with Noise Cancellation |
| Charging Port |
USB-C & Desktop Charger Base |
| Dimensions (H x W x D) |
4.8 x 2.1 x 1.2 Inches (122 x 54 x 30 mm) |
| Weight (with battery) |
10.6 oz (300 g) |
Compatibility
What's Included
| Description |
SKU/Model |
Status |
| Motorola Mag One BPR50DX Radio Body |
BPR50DX |
Included |
| 2200mAh Mag One Li-Ion Rechargeable Battery |
PMNN4847AR |
Included |
| Mag One 2-Inch Spring-Action Belt Clip |
PMLN8600A |
Included |
| Mag One UHF Stubby Antenna (450–470 MHz) |
PMAE4118A |
Included with UHF version only |
| Mag One VHF Whip Antenna (152–174 MHz) |
PMAD4165A |
Included with VHF version only |
| BPR50DX Charging Kit: USB-C Charging Cable |
PMKN4294A |
Included |
| BPR50DX Charging Kit: Single-Unit Charging Cradle |
PMLN8599AR |
Included |
| BPR50DX Charging Kit: USB Wall Charger |
PS000150A31 |
Included |
Recommended Accessories
Audio Accessories
Suggested Earpieces & Headsets
The following audio accessories are suggested for the BPR50DX and are sold separately.
Batteries & Charging Hardware
The BPR50DX charging kit consists of the PMLN8599AR single-unit charging cradle, PMKN4294A USB-C charging cable, and PS000150A31 USB wall charger. These components are included with the radio and are also available individually as replacements.
More Resources
Frequently Asked Questions
Does the Motorola Mag One BPR50DX need programming, and is programming software included?
The BPR50DX comes with default channel settings, but it needs to be configured to match your team's frequencies, tones, and digital settings when those differ from the defaults. BPR50DX programming software is included with the purchase of a BPR50DX from Atlantic Radio.
To program the radio yourself, you will also need the compatible Motorola PMKN4311A USB-C data and programming cable, sold separately. The included programming software and the programming cable are separate items; the cable is not included with the software offer.
Prefer to have us configure your radio? Add our Two-Way Radio Programming Services to your order or contact our team before ordering. Programming service is separate from the included software.
What are the default frequencies and TPL tones for the UHF BPR50DX?
The UHF version has the following default frequency and TPL tone settings. Frequencies are shown in MHz and TPL tones in Hz. Entries are listed in their default order, including repeated frequency-and-tone combinations. These settings apply only to the UHF version; a radio that has been reprogrammed may have different settings.
| UHF Frequency (MHz) |
TPL Tone (Hz) |
| 464.50000 |
67.0 |
| 464.50000 |
77.0 |
| 464.50000 |
88.5 |
| 464.50000 |
179.9 |
| 464.50000 |
67.0 |
| 464.55000 |
67.0 |
| 464.55000 |
82.5 |
| 464.55000 |
94.8 |
| 464.55000 |
179.9 |
| 464.55000 |
67.0 |
| 461.36250 |
74.4 |
| 464.48750 |
82.5 |
| 464.53750 |
85.4 |
| 466.03750 |
91.5 |
| 466.08750 |
97.4 |
| 461.21250 |
67.0 |
What are the default frequencies and TPL tones for the VHF BPR50DX?
The VHF version has the following default frequency and TPL tone settings. Frequencies are shown in MHz and TPL tones in Hz. Entries are listed in their default order, including repeated frequency-and-tone combinations. These settings apply only to the VHF version; a radio that has been reprogrammed may have different settings.
| VHF Frequency (MHz) |
TPL Tone (Hz) |
| 151.62500 |
67.0 |
| 151.62500 |
77.0 |
| 151.62500 |
88.5 |
| 151.62500 |
179.9 |
| 151.62500 |
67.0 |
| 151.95500 |
67.0 |
| 151.95500 |
82.5 |
| 151.95500 |
94.8 |
| 151.95500 |
179.9 |
| 151.95500 |
67.0 |
Which frequencies will not work on the VHF and UHF BPR50DX models?
The frequencies below are not supported on the respective BPR50DX models, even where they fall within the advertised frequency range. Check your required frequencies before ordering or arranging programming. All values are in MHz; the VHF list applies to the VHF model, and the UHF list applies to the UHF model.
| VHF Model: Unsupported Frequencies (MHz) |
UHF Model: Unsupported Frequencies (MHz) |
139.99500
140.00000
140.28000
140.28500
140.37000
140.46500
155.99500
167.93000
170.00000
171.82000
172.80000
172.80500 |
400.00000
403.20000
405.00000
409.08000
409.08500
411.10000
419.99000
420.00000
422.40000
432.00500
432.06500
448.47000
449.28000
454.64500
460.80000 |
What is the primary function of the Motorola Mag One BPR50DX?
The Motorola Mag One BPR50DX is a dual-mode digital (DMR Tier II) and analog portable two-way radio designed for reliable workplace voice communications across 64 channels organized into 4 zones.
Is the Motorola Mag One BPR50DX compatible with older BPR40 and BPR40d radios?
Yes, the Motorola Mag One BPR50DX communicates directly with legacy BPR40 and BPR40d radios in analog mode. Existing Mag One audio accessories (such as headsets and speaker mics) are also fully compatible. However, legacy BPR40 batteries and chargers are not compatible because the Motorola Mag One BPR50DX uses a redesigned 2200mAh battery platform.
How long does the battery last on the Motorola Mag One BPR50DX?
The included 2200mAh Li-Ion battery supplies up to 23 hours of runtime in digital mode and up to 16 hours in analog mode based on a standard 5-5-90 duty cycle.
How is the Motorola Mag One BPR50DX charged and how fast is it?
The Motorola Mag One BPR50DX can be recharged using either its built-in USB-C side port or the desktop drop-in charging cradle. The included charging kit consists of the PMLN8599AR single-unit charging cradle, PMKN4294A USB-C charging cable, and PS000150A31 USB wall charger. Desktop drop-in charging is approximately 30% faster than USB-C charging, and internal protective circuitry prevents overcharging if left in the cradle.
Can the Motorola Mag One BPR50DX communicate with MOTOTRBO radios?
Yes, when programmed with matching frequencies, color codes, and talkgroups, the Motorola Mag One BPR50DX supports DMR Tier II standards and operates seamlessly alongside MOTOTRBO series radios.
What safety features are supported on the Motorola Mag One BPR50DX?
The Motorola Mag One BPR50DX includes a dedicated top orange emergency button, Lone Worker inactivity timers, Remote Monitor mic activation, and Remote Radio Disable/Enable commands. Note that emergency and remote management commands operate strictly in digital mode.
Is the Motorola Mag One BPR50DX water-resistant and durable?
Yes, the Motorola Mag One BPR50DX carries an IP55 ingress rating protecting against dust and low-pressure water jets. It is also tested against Military Standard 810 C/D/E/F/G/H for shock, vibration, thermal extremes, and impact durability.
Does the Motorola Mag One BPR50DX support hands-free operation?
Yes, the Motorola Mag One BPR50DX supports Voice Operated Transmit (VOX) when used with compatible earpieces or headsets, and VOX mode can be easily assigned to one of the three programmable side buttons.
Can the Motorola Mag One BPR50DX be charged with a portable power bank or USB-C cable?
Yes. Thanks to its integrated USB-C port, the Motorola Mag One BPR50DX can be recharged using standard USB-C cables connected to wall adapters, vehicle USB ports, or portable power banks, providing flexible field power options when away from the desktop charging cradle.
Warranty
2-year manufacturer's warranty.
