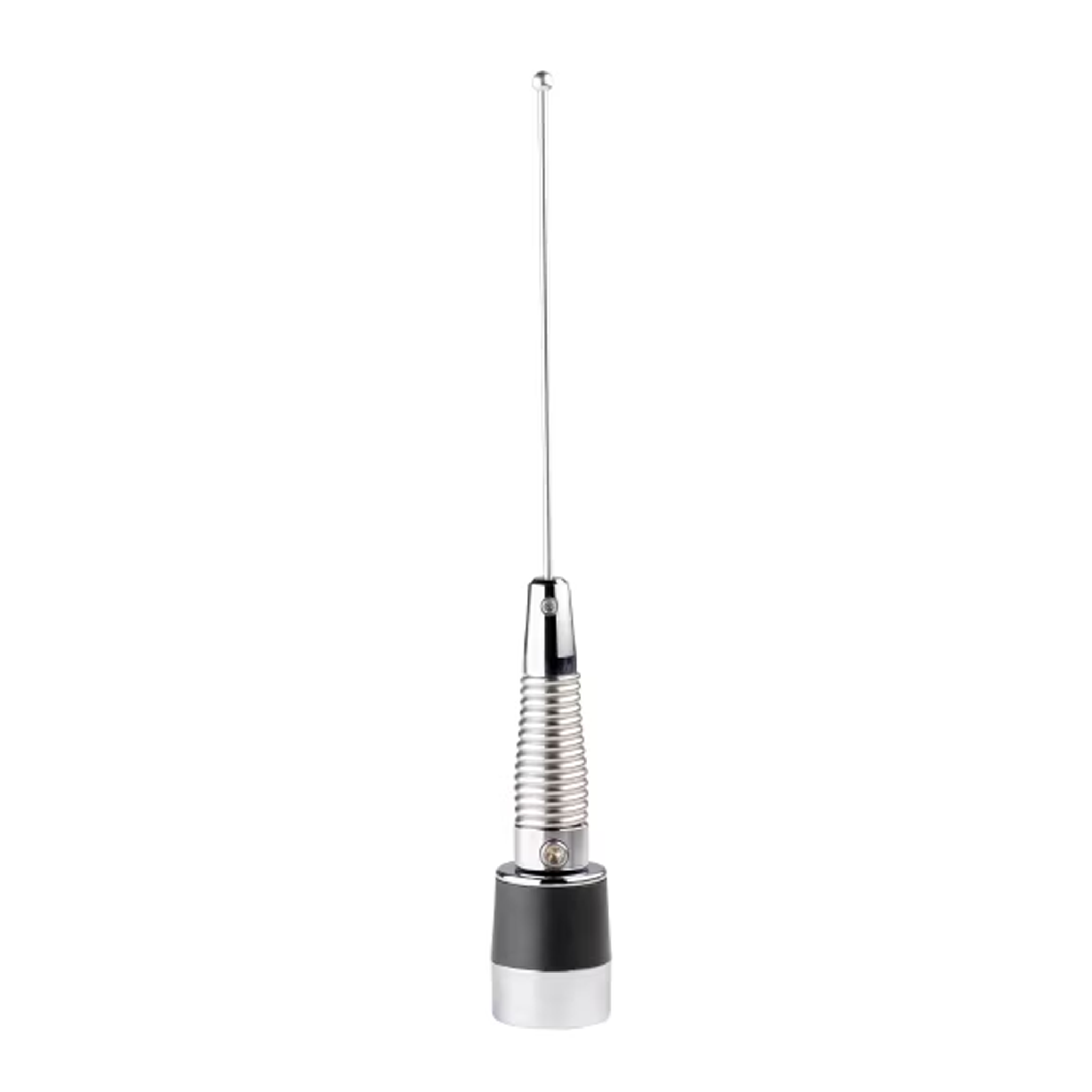

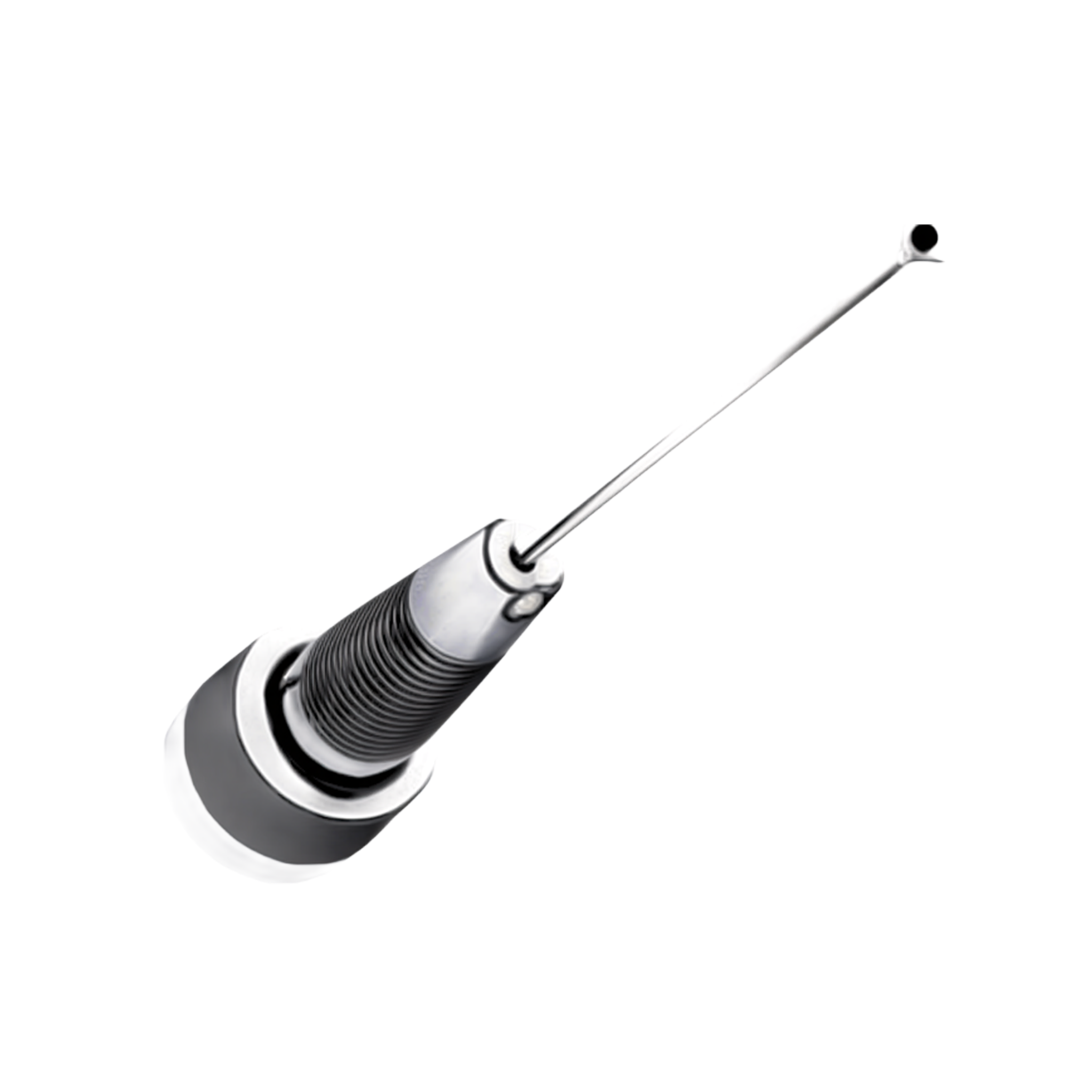

Professional 2.0 dB Gain Wideband UHF Mobile Roof-Mount Antenna
Genuine Motorola wideband 403–527 MHz vehicular antenna featuring 2.0 dB gain, permanent 3/4-inch through-hole roof mount, and Mini-UHF termination.
The Motorola HAE6022A (catalog part HAE6022 / HAE6022A) is an authentic original equipment manufacturer (OEM) commercial vehicular roof-mount antenna designed for high-performance mobile two-way radio installations. Operating across the entire commercial UHF frequency spectrum from 403 to 527 MHz, this wideband 2.0 dB gain antenna delivers broad coverage, low voltage standing wave ratio (VSWR), and dependable signal propagation without requiring manual whip trimming. It is engineered specifically for public safety vehicles, commercial transport fleets, municipal service trucks, and utility field units operating across complex multi-channel UHF systems.
Engineered for permanent vehicle installation, the Motorola HAE6022A mounts through a standard 3/4-inch hole drilled into the vehicle’s metal roof, establishing direct ground-plane contact with the chassis. Its radiating geometry emits a vertically polarized signal pattern that excels in urban city corridors, industrial complexes, and uneven terrain where surrounding buildings and structures obstruct horizontal line-of-sight propagation. The antenna assembly includes a low-loss coaxial cable feedline terminated with a Mini-UHF (Mini-U) male connector designed to mate directly with the antenna ports of commercial mobile transceivers. Operating in full compliance with commercial FCC Licensing standards, the HAE6022A ensures optimal RF performance across MOTOTRBO XPR, CM, DEM, and DGM series mobile transceivers.
Key Features & Benefits
-
Wideband 403–527 MHz Coverage: Covers the full commercial and public safety UHF frequency band without requiring field tuning or cutting the radiating element.
-
2.0 dB Gain Radiation Pattern: Delivers elevated gain and high-angle vertical signal radiation to enhance signal penetration through urban high-rises and dense structures.
-
Integrated Mini-UHF Termination: Supplied with a low-loss coaxial cable lead terminated with a crimp Mini-UHF connector for direct connection to mobile radio chassis.
-
Permanent 3/4-Inch Through-Hole Mount: Secures through a standard vehicle roof aperture, establishing a waterproof environmental seal and direct metal ground-plane connection.
-
Resilient Stainless Steel Construction: Heavy-duty flexible whip rod resists wind vibration, tree branch impacts, and highway drag without permanent bending.
-
Non-GPS Simplified Design: Purpose-built for vehicle installations that do not require satellite navigation tracking or that utilize a separate external GPS antenna feed.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
HAE6022A / HAE6022 |
| Product Type |
Wideband Vehicular Roof-Mount Mobile Antenna |
| Frequency Band |
UHF |
| Frequency Range |
403–527 MHz (Wideband) |
| Antenna Gain |
2.0 dB |
| Radiation Pattern |
Omnidirectional (Vertical Polarization) |
| Mounting Interface |
Permanent 3/4-inch Through-Hole Roof Mount |
| Connector Termination |
Mini-UHF (Mini-U) |
| Coaxial Cable Type |
Low-Loss Coaxial Feedline (Approx. 12–17 ft) |
| Integrated GPS |
No |
| Whip Material |
High-Strength Stainless Steel |
| Base Finish |
Chrome / Black High-Impact Polymer |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
Compatibility
Compatible Motorola Mobile Two-Way Radios
|
|
|
|
| CM200d |
DGM6100 |
XPR5350 |
CM300d |
| DGM8000e |
XPR5550 |
DEM300 |
DGM8500e |
| DEM400 |
DM2600 |
DEM500 |
XiRM6660 |
| DGM4100 |
XPR2500 |
DGM5000e |
XPR4350 |
| DGM5500e |
XPR4550 |
|
|
Recommended Accessories
Mobile DC Power Harnesses & Hardware
Microphones & Audio Peripherals
More Resources
Frequently Asked Questions
What does the "A" suffix at the end of part number HAE6022A mean?
The "A" suffix designates the latest official manufacturing revision from Motorola Solutions. HAE6022A is the newer, current production version replacing the base part number HAE6022, providing identical electrical performance, broad 403–527 MHz bandwidth, and full backward compatibility across all compatible mobile transceivers.
What does "Mini U" refer to on the Motorola HAE6022A?
"Mini U" refers to the Mini-UHF RF coaxial connector termination on the cable assembly. Mini-UHF is the standard RF antenna interface found on the rear panel of commercial Motorola mobile transceivers (such as the CM200d, CM300d, XPR 2500, and XPR 5550 series).
Does the Motorola HAE6022A antenna require tuning or cutting?
No. The HAE6022A is factory-engineered as a wideband antenna covering the entire 403–527 MHz frequency range, eliminating the need to cut or manually tune the whip during installation.
Does this antenna require a vehicle ground plane?
Yes. The Motorola HAE6022A is designed to mount through a metallic surface (such as a vehicle’s steel or aluminum roof panel), which serves as the RF ground plane to ensure low VSWR and rated 2.0 dB gain performance.
Does the HAE6022A include integrated GPS functionality?
No. The HAE6022A is an RF voice and data transmission antenna only and does not include internal GPS satellite receiver elements.
Warranty
1-year manufacturer’s replacement warranty.
