Description
Tram Browning BR-34

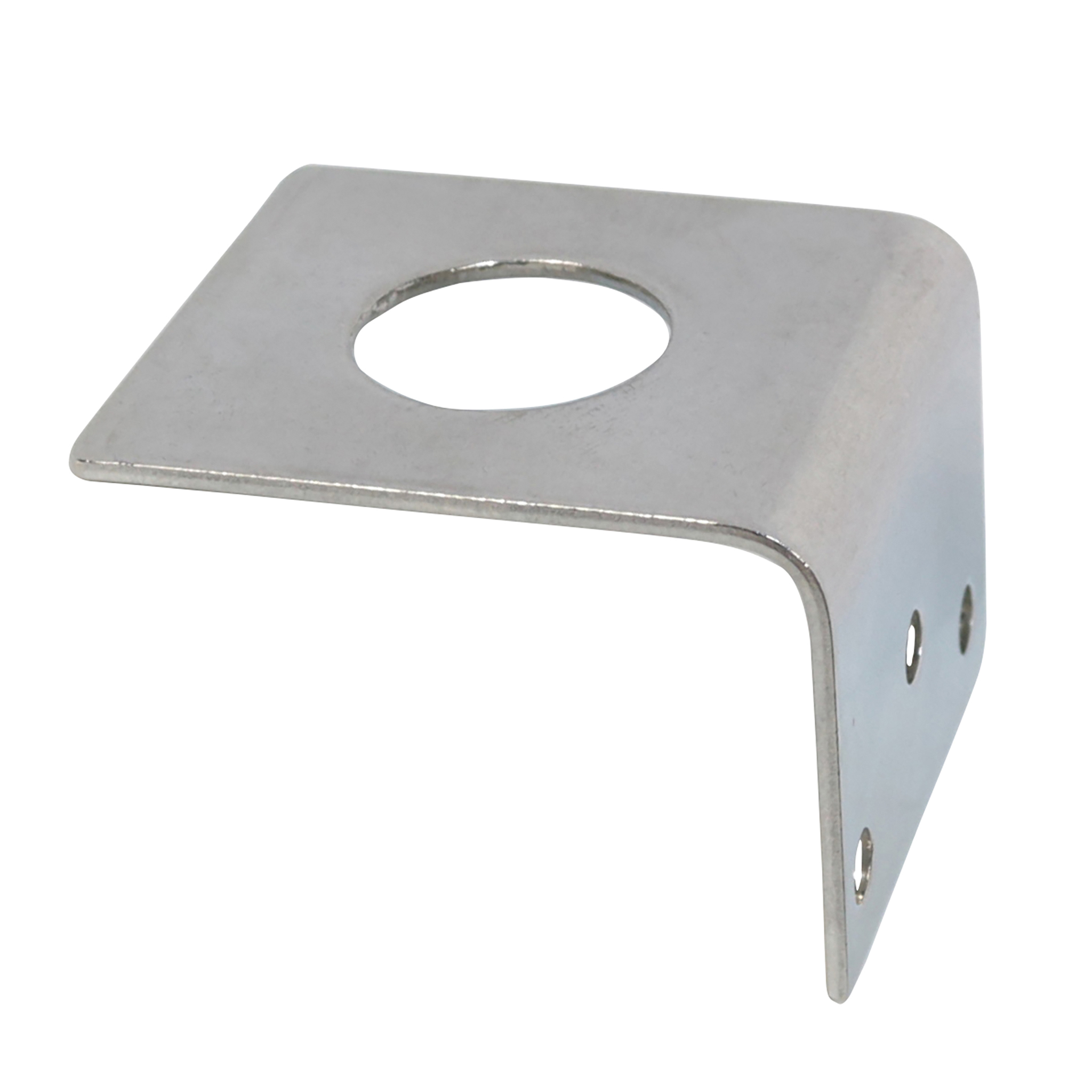

3/4" Hole NMO L-Bracket Antenna Mount (Silver Stainless Steel)
Rugged and Reliable Mounting Solution
The Tram Browning BR-34 and Tram Browning BR-34-B are a professional-grade NMO L-bracket designed for secure, low-profile antenna installations on vehicles. Ideal for mounting on trunk lips, fender grooves, or vertical surfaces, this bracket provides a stable platform for mobile radio antennas without the need to drill permanent holes directly into the center of your vehicle's roof. Featuring a classic metallic silver finish, it offers a clean, traditional look that complements chrome or light-colored vehicle trim. The actual size of the hole is 13/16" so the NMO hole mount can be installed from the bottom instead of feeding the cable through the hole, packaged in a poly bag with a header card for diplay.
Constructed from high-quality stainless steel, the BR-34/BR-34-B is built to withstand the rigors of mobile use, including high wind resistance and exposure to the elements. A standout feature of this bracket is its precision-engineered 13/16" hole. While designed for standard 3/4" NMO mounts, the slightly larger 13/16" opening allows the mount to be installed from the bottom of the bracket. This clever design choice eliminates the need to feed the entire length of the coaxial cable through the hole, significantly simplifying the installation and maintenance process.
Key Features
-
Heavy-Duty Stainless Steel: Crafted for maximum durability and long-term resistance to rust and corrosion in all weather conditions.
-
Two DIfferent Finishes:
-

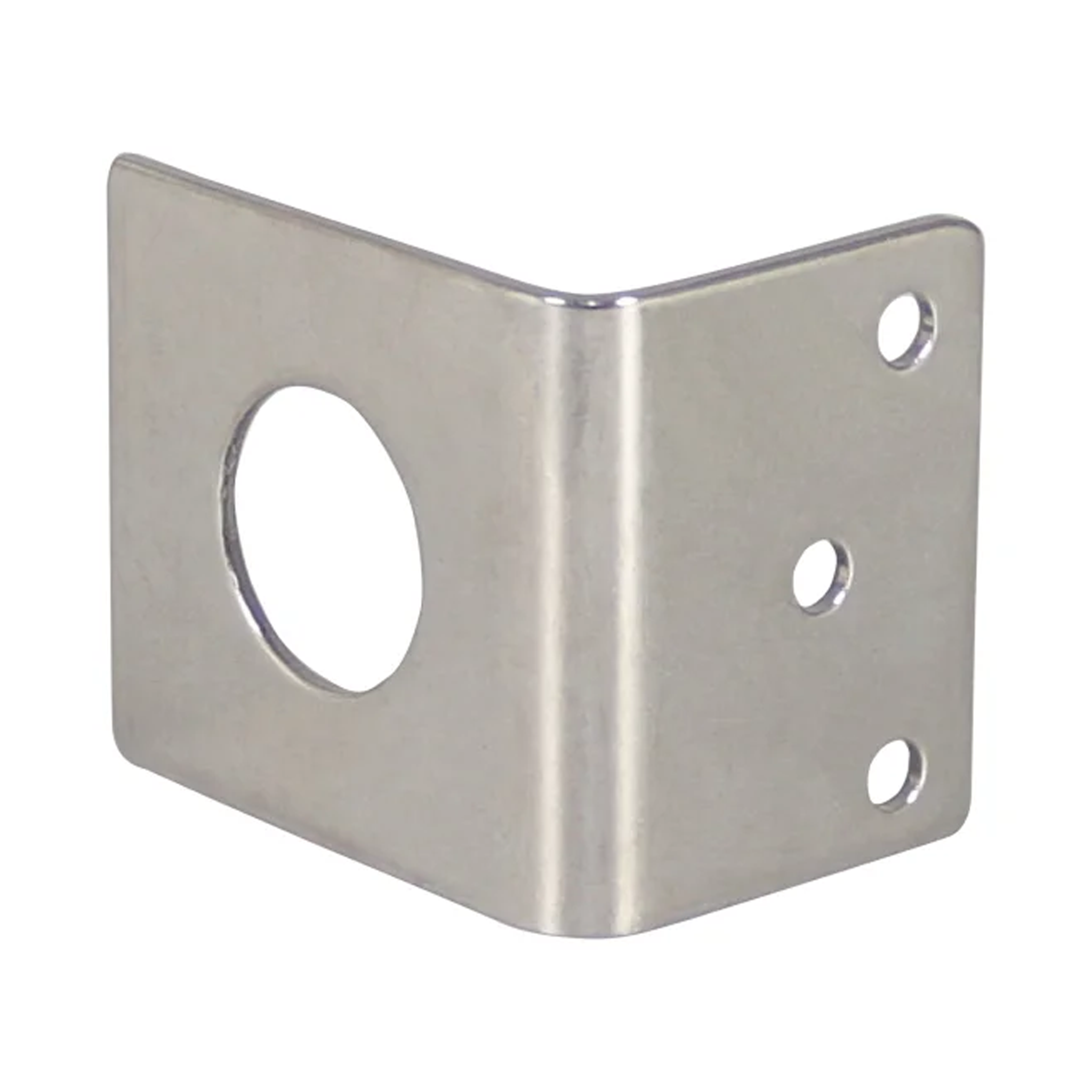

Metallic Silver Finish: Provides a classic, high-quality aesthetic that matches standard stainless steel hardware.
-

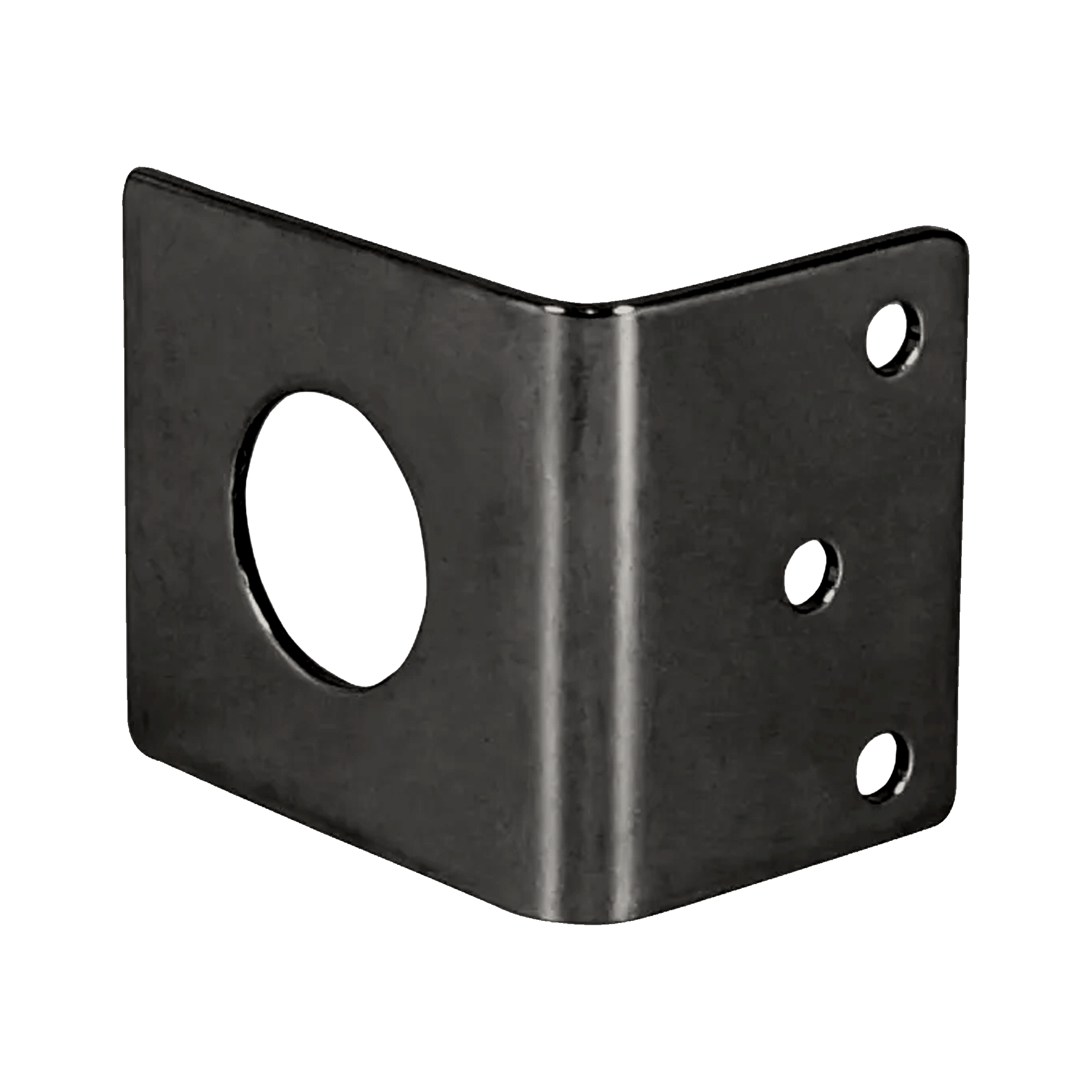

Black Finish: Provides a professional, non-reflective aesthetic for discrete or tactical vehicle setups.
-
Smart Hole Design: The 13/16" aperture allows for "bottom-up" NMO installation, saving time on cable routing during setup.
-
Versatile Mounting: Engineered specifically for fender grooves, trunk edges, or other narrow vertical gaps on cars and trucks.
-

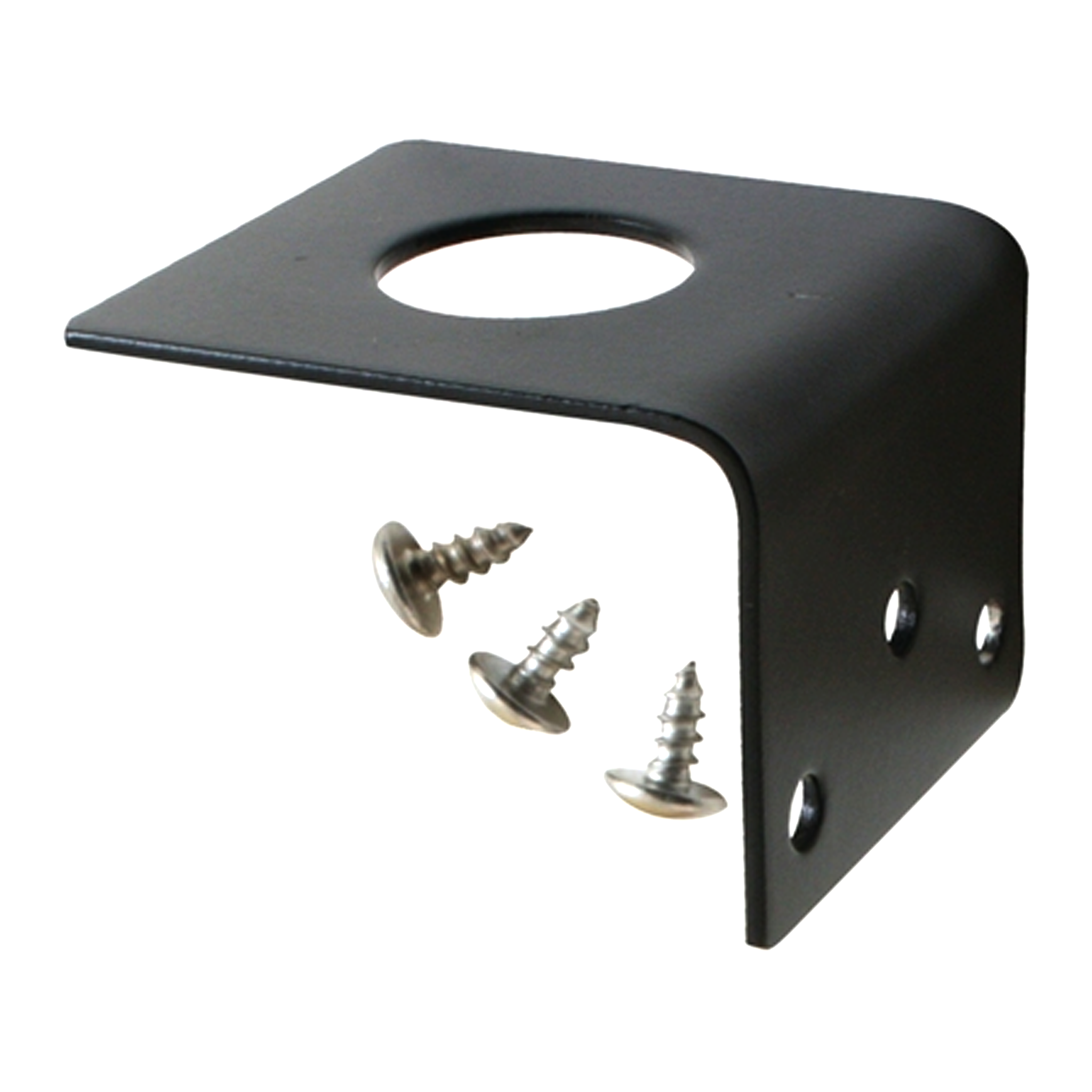

Complete Hardware Kit: Includes three self-tapping mounting screws to ensure a rigid and secure attachment to the vehicle body.
Compatibility
|
|
| Mount Type |
Standard 13/16" NMO Hole Mounts |
| Placement |
Trunk Grooves, Fender Lips, Hood Edges, Shelves |
| Application |
Mobile VHF/UHF, CB, and Amateur Radio Antennas |
Specifications
-
Part Number: BR-34 / BR-34-B
-
Material: Stainless Steel
-
Color: Silver / Metallic / Black
-
Hole Size: 13/16" (Optimized for 3/4" NMO)
-
Mounting Type: L-Bracket
-
Manufacturer: Tram Browning
Benefits
-
Damage-Free Installation: Allows for a high-performance NMO mount placement without drilling into the main roof skin of the vehicle.
-
Ease of Access: The bottom-loading hole design makes it easy to swap mounts or cables without deconstructing the entire antenna assembly.
-
Universal NMO Support: Compatible with nearly all standard NMO-style mobile antennas and base stations available today.
Warranty
Standard manufacturer's warranty.
