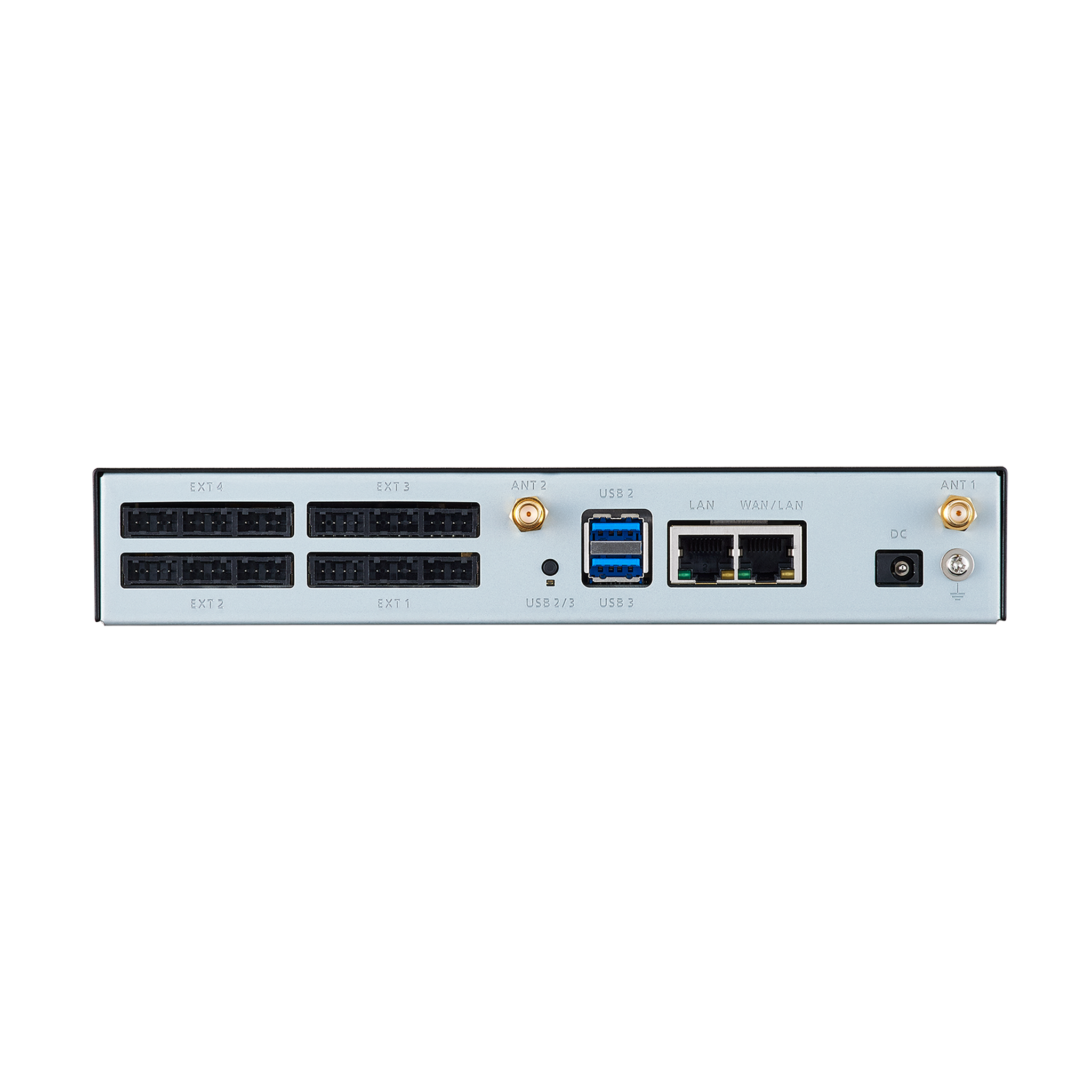

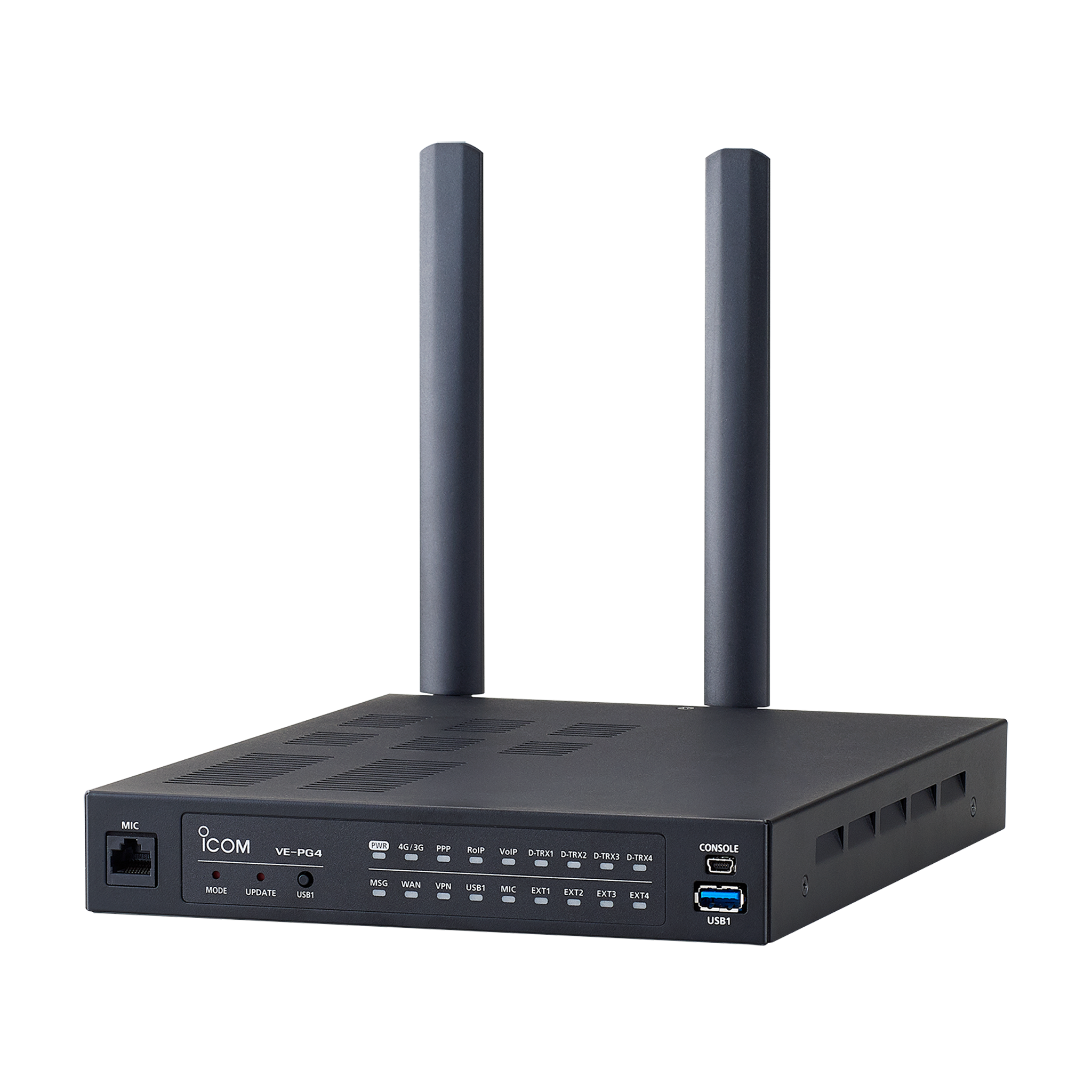

Icom VEPG4
RoIP Gateway Bridging LMR Systems with POC
The Icom VEPG4 is a versatile RoIP (Radio over IP network) gateway unit, which
seamlessly interconnects LMR radios, LTE radios, IP communication terminals,
IP phone systems and external devices. The VEPG4 can record incoming and outgoing calls to an external USB device connected to the VE-PG4. Up to four recording settings are programmable. The recording call type is selectable from All, Group, and Individual calls. In addition, the monitor function transfers the received audio data to an intended device. GPS position and status information from the IP501H/IP501M LTE transceivers can be received and transferred to a PC to track the location of the radio users or a user in a vehicle. The optional RC-FS10 remote communicator creates an IP-based virtual radio on a PC, and can communicate with land mobile radios, LTE radios, and IP communication terminals through the VE-PG4.
VEPG4 KEY FEATURES
- Built-in RoIP, SIP gateway, IP router, IP PBX & IP communication terminal controller functions
- Call Recording to a USB Drive
- Microphone Connection for Base Operation
- Position and Status Information from Transceivers
- Remote Communicator Software, RC-FS10 (optional)
- Serial Pass-through Function
- SIP Server and IP-PBX Functions
- Router Functions with VPN Tunnel
- Half-width 1U Form Design
- Online Firmware Update
- Management Features
- SYSLOG and SNMP
- Telnet and SSH
- Ping Test and Traceroute Test
- Abnormal condition monitoring, such as LAN port link-down and SIP server registration error
- Administrator password
- SNTP server
- Security slot
VEPG4 KIT INCLUDES
- Antennas
- Antenna bases with 1.5m (4.9 ft) cable
- BC-236 AC adapter
- Quick connectors
WARRANTY
*1-year manufacturer's warranty on the repeater.
