Description
Compact 147–160 MHz VHF Antenna with GPS Support

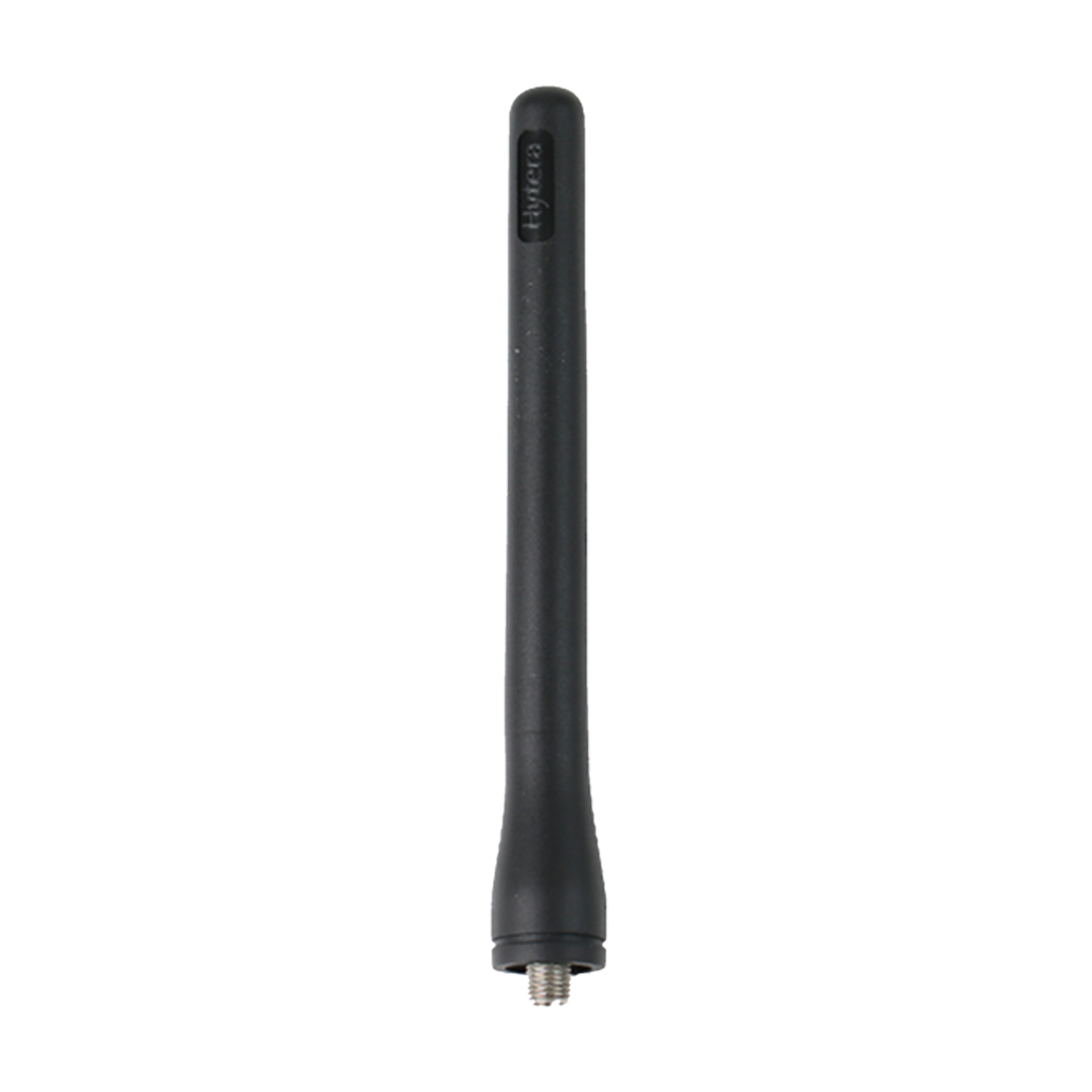

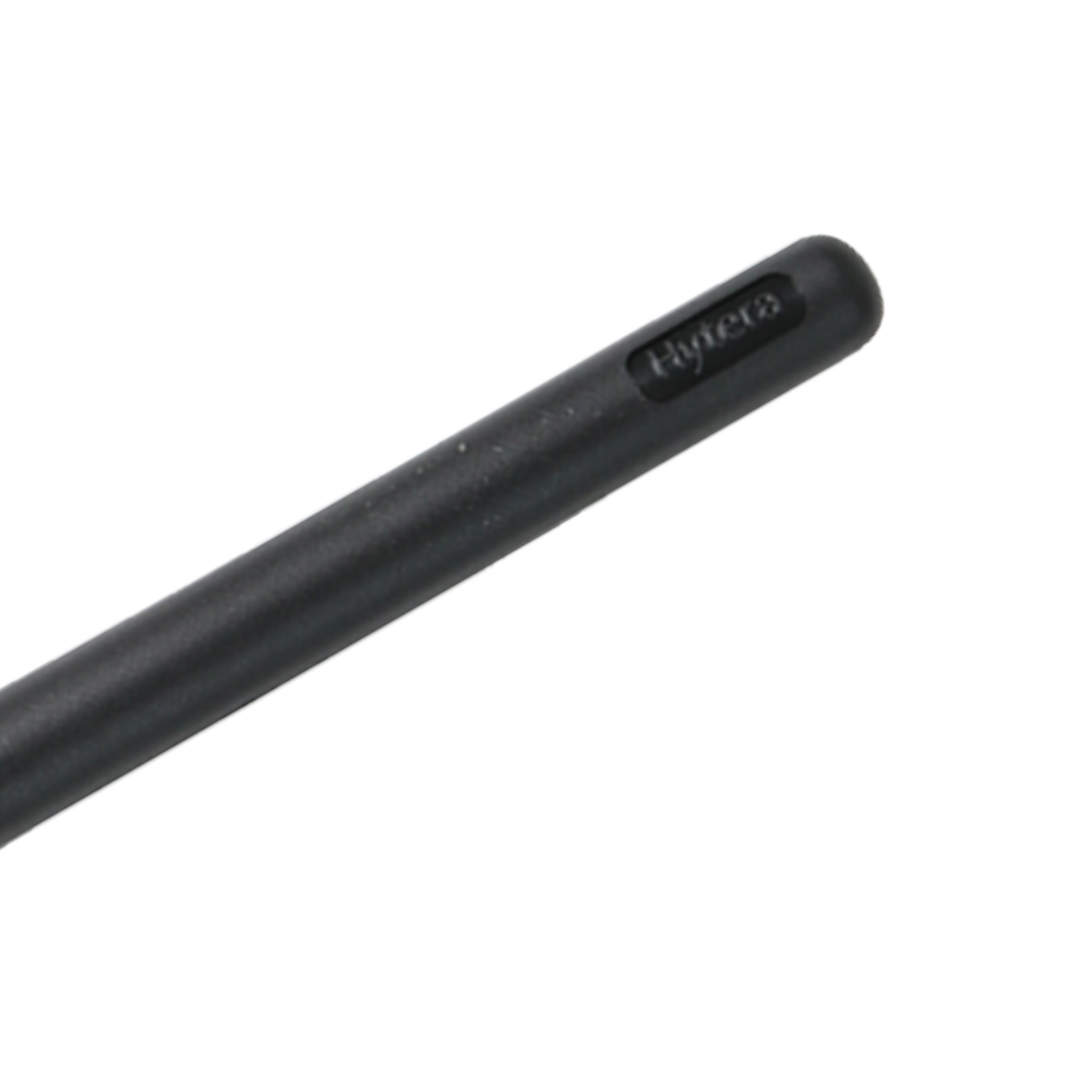

The Hytera AN0153H09 is a 12 cm VHF stubby antenna for compatible Hytera portable two-way radios operating on 147–160 MHz channels. Its shorter profile helps keep a belt-worn radio manageable around clothing and equipment. A helical brass core and threaded SMA connection complete the compact design.
The AN0153H09 replaces AN0153H08. If you are replacing an older antenna, confirm your radio model and programmed frequencies before ordering. This is a 147–160 MHz antenna, not a full-band 136–174 MHz antenna or a UHF antenna.
Key Features & Benefits
-
147–160 MHz VHF coverage: Match the antenna to your radio's actual operating channels.
-
12 cm stubby profile: A compact option for users who prefer less antenna length above the radio.
-
GPS 1575 MHz support: Supports GPS reception when used with a compatible GPS-equipped radio. It does not add GPS hardware or tracking capability to a radio that lacks it.
-

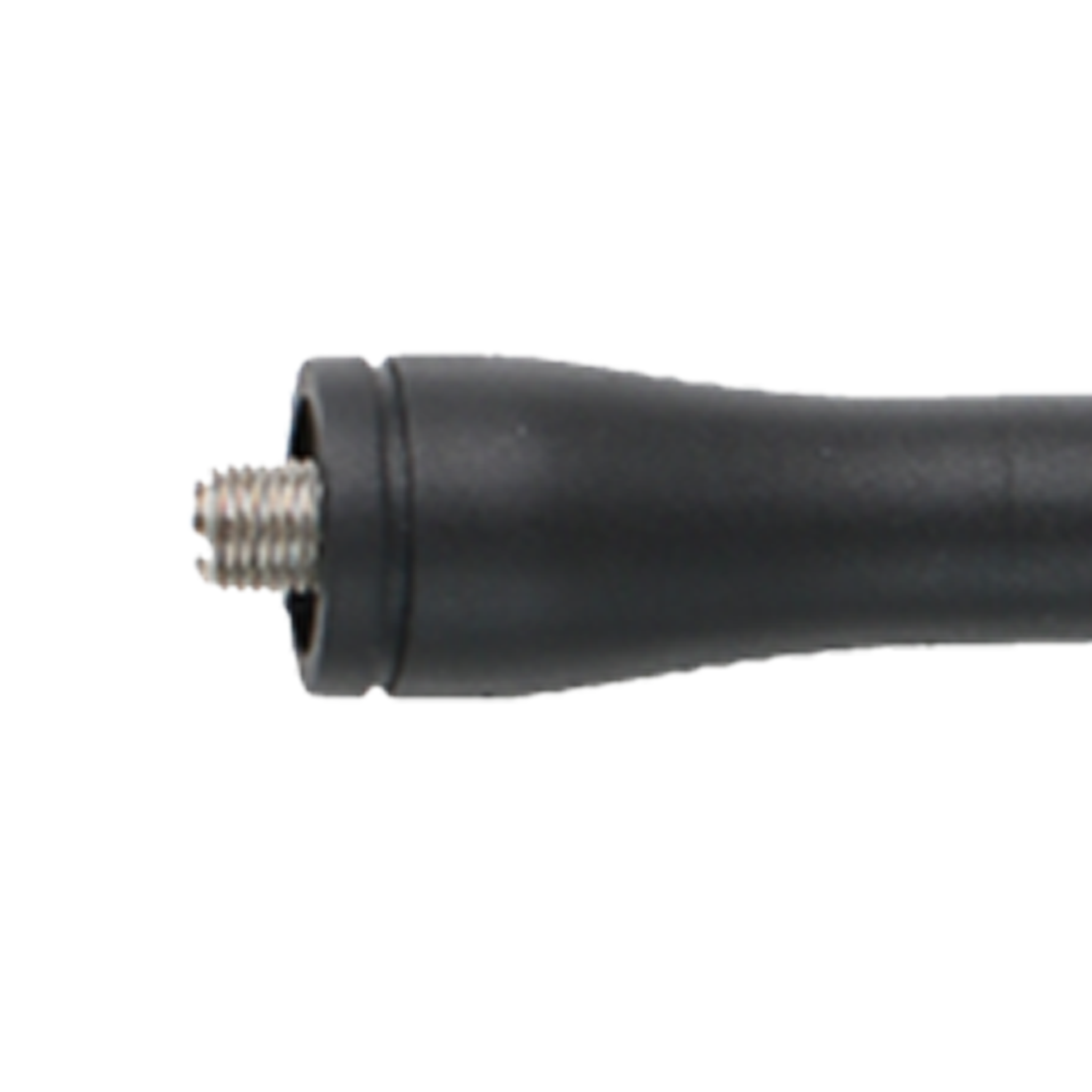

SMA connection: Threaded attachment for the compatible radio models listed below.
-
Replacement part reference: AN0153H09 replaces AN0153H08.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model / SKU |
AN0153H09 |
| Replaces |
AN0153H08 |
| Product type |
VHF stubby antenna |
| Voice frequency range |
147–160 MHz |
| GPS frequency |
1575 MHz, with a compatible GPS-equipped radio |
| Connector |
SMA |
| Length |
12 cm |
| Core |
Helical brass |
Compatibility
For compatible VHF versions of the following radios with operating channels within 147–160 MHz. A matching model name or connector alone does not establish frequency compatibility. UHF versions are not compatible with this VHF antenna.
For intrinsically safe radio configurations, confirm the manufacturer-approved antenna and radio combination before use. A compatibility listing alone does not establish hazardous-location approval.
What's Included
| Description |
SKU / Model |
Status |
| VHF stubby antenna |
AN0153H09 |
Included |
| Compatible portable radio |
Selected VHF model |
Sold Separately |
Recommended Products
Compatible Radios
-
Hytera HP602: Choose a compatible VHF version and confirm channels fall within 147–160 MHz.
-
Hytera HP682: HP6 option with display and full keypad; VHF versions only for this antenna.
-
Hytera PD402i: Compatible PD4 model when configured for VHF channels in this antenna's range.
-
Hytera PD482i: Display-equipped PD4 option; select the appropriate VHF configuration.
-
Hytera PD502i / PD562i: Compatible VHF models for existing PD5 fleets.
-
Hytera PD702i: PD7 option for compatible VHF deployments.
-
Hytera PD782i: Full-keypad PD7 option; verify VHF channel requirements.
Related VHF Antenna Options
These are selection alternatives, not automatic substitutes. Match each antenna's radio fitment and frequency range to your application.
-
Hytera AN0153H07: 17 cm option covering the same 147–160 MHz voice range.
-
Hytera AN0153H12: 147–160 MHz VHF/GPS option for its listed compatible models.
-
Hytera AN0155H09: 20 cm alternative with broader 136–174 MHz voice coverage for compatible radios.
-
Hytera AN0157H01: HP602/HP682 stubby option for 150–165 MHz channels.
Frequently Asked Questions
Does AN0153H09 replace AN0153H08?
Yes. AN0153H09 is the replacement for AN0153H08. Confirm the compatible radio model and 147–160 MHz operating frequencies when selecting the replacement.
Will it cover the entire 136–174 MHz VHF band?
No. Its specified voice range is 147–160 MHz. If your channels fall outside that range, select an antenna specified for those frequencies and approved for your radio model.
Can I use it on a UHF HP602 or HP682?
No. Although these radio models are available in multiple bands, this antenna is for compatible VHF versions operating within 147–160 MHz, not UHF versions.
Does this antenna add GPS to my radio?
No. It supports 1575 MHz GPS reception on compatible radios already equipped with GPS hardware and the necessary configuration. Standard voice operation does not require GPS tracking to be enabled.
Will a stubby antenna increase my radio's range?
No range increase is promised. Coverage depends on the radio, channel frequencies, antenna suitability, terrain, buildings, and operating conditions. Choose the 12 cm stubby format for its compact profile, not a guaranteed distance.
Is the radio included?
No. This listing includes the AN0153H09 antenna only. Radios and other accessories are sold separately.
How do I check which antenna I need?
Check the radio model, VHF or UHF version, programmed channel frequencies, and required connector. Contact Atlantic Radio with those details if you need help selecting the correct antenna.
Warranty
1-year manufacturer's warranty.
