Description
Ritron DTX-Ls Series
WIRELESS TRANSCEIVER DATA MODULES
The DTX-Ls Series wireless transceiver modules are high performance, cost-effective, low current drain, single board OEM transceivers available in VHF and UHF frequency bands. They are designed and made in the USA. There two types of models: Radio In Housing and Board Only Version. Please see below for the various models in these two categories.

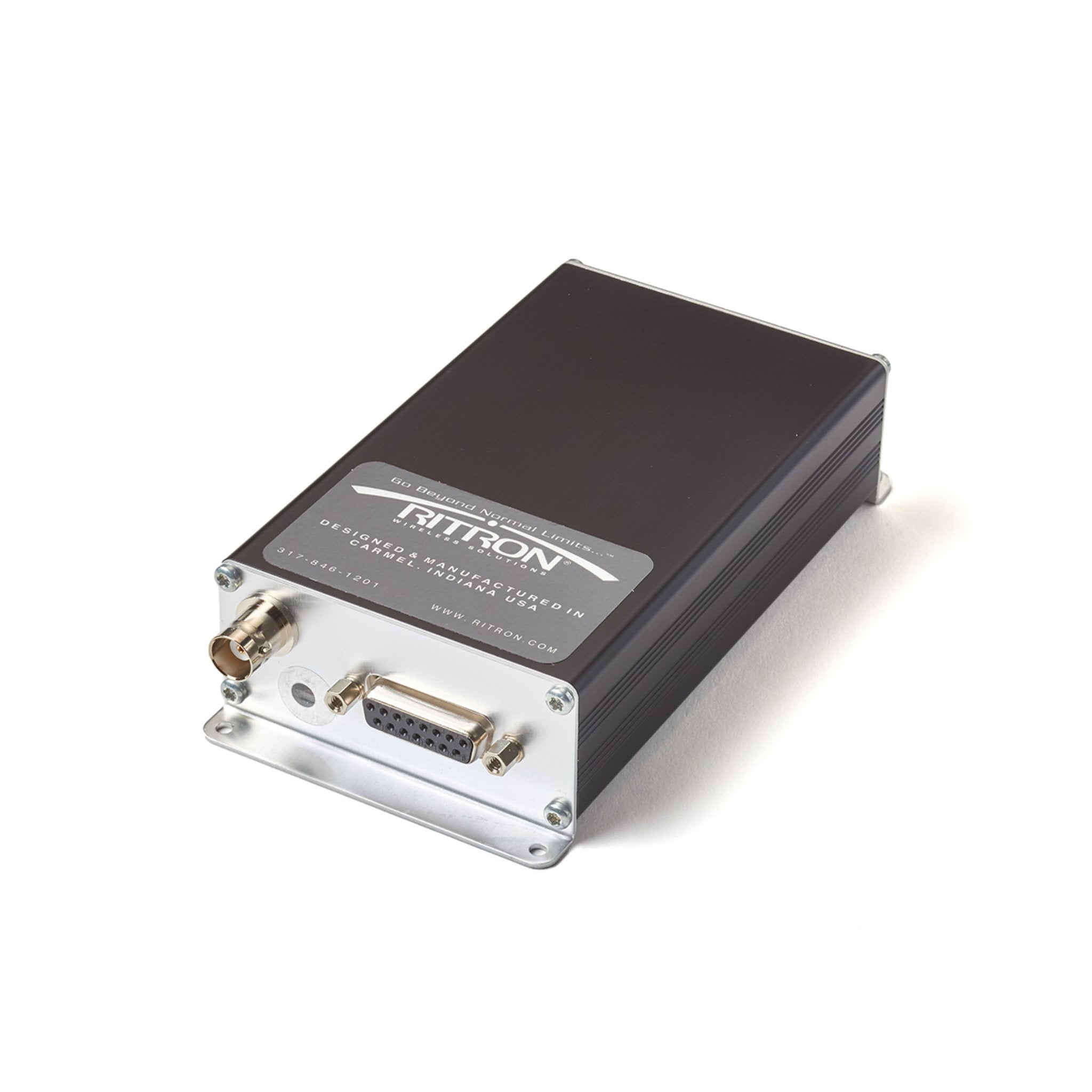

RADIO IN HOUSING
The types of models in this category include single PCB, a programmable RF transceiver with a metal enclosure, a BNC Antenna Connector, and a DB-15 Data/Power Connector.
| Model |
Frequency |
Bandwidth |
Wattage |
Voltage Req |
DTX-4450BN5E
|
450-470MHz
|
Narrow Band
|
2-5 |
8-15 VDC |
DTX-4450BN8E
|
450-470MHz |
Narrow Band |
2-8 |
8-15 VDC |
DTX-445GBN5E
|
400-417MHz
|
Narrow Band |
2-5 |
8-15 VDC |
DTX-445HBN5E
|
411-429MHz
|
Narrow Band |
2-5 |
8-15 VDC |
DTX-446-0BN5E*
|
450-490MHz |
Narrow Band |
2-5 |
8-15 VDC |
DTX-1450BN5E
|
136-174MHz
|
Narrow Band |
2-5 |
8-15 VDC |
* Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.

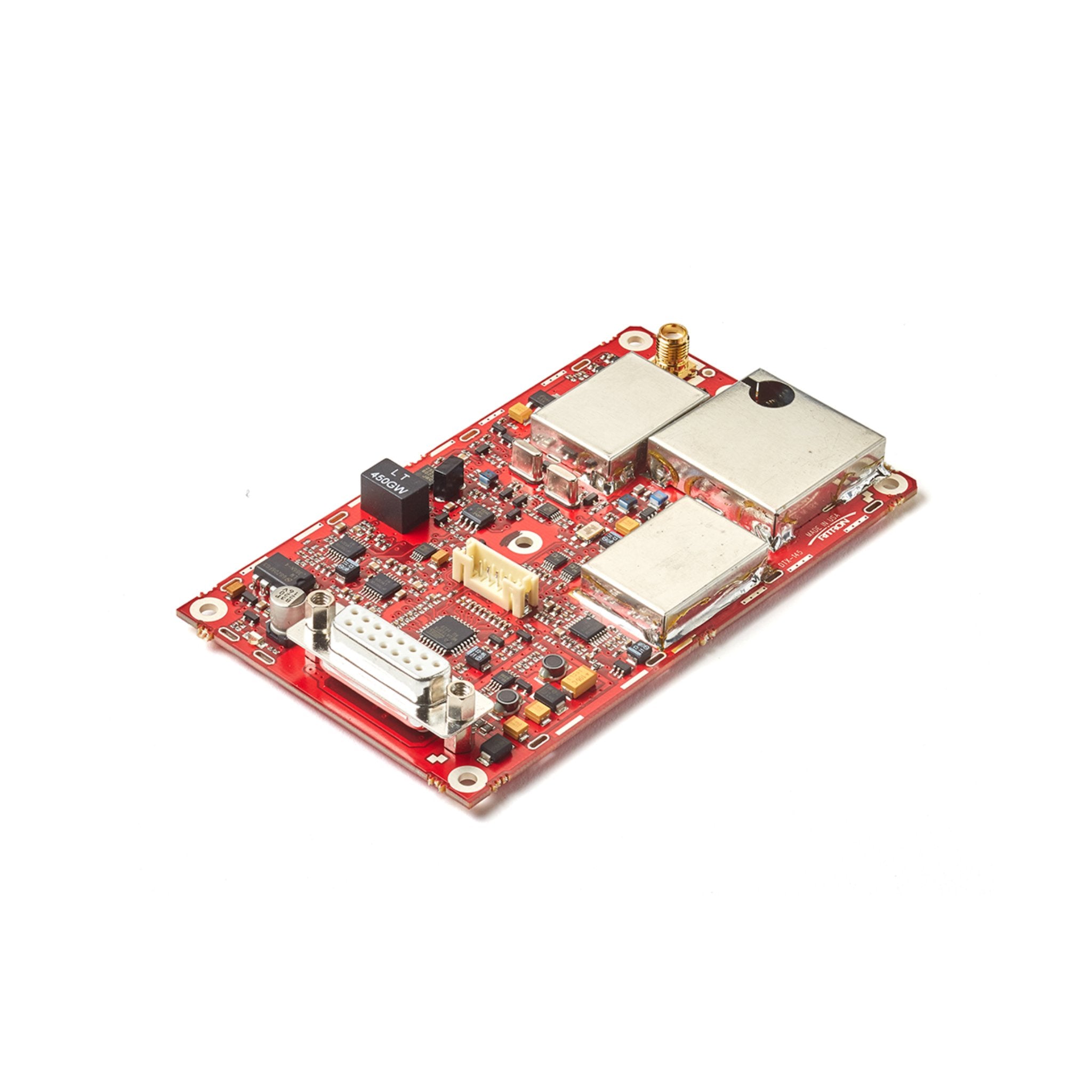

BOARD ONLY VERSION
The types of models in this category include a single PCB programmable RF Transceiver, SMA antenna connector, and a straight-up DB-15 Data/power connector.
| Model |
Frequency |
Bandwidth |
Wattage |
Voltage Req |
DTX-4450SN5D
|
450-470MHz |
Narrow Band
|
2-5 |
8-15 VDC |
| DTX-4450SN8D |
450-470MHz |
Narrow Band |
2-8 |
8-15 VDC |
| DTX-445GSN5D |
400-417MHz |
Narrow Band |
2-5 |
8-15 VDC |
| DTX-445HSN5D |
411-429MHz |
Narrow Band |
2-5 |
8-15 VDC |
| DTX-446-0SN5D* |
450-490MHz |
Narrow Band |
2-5 |
8-15 VDC |
| DTX-1450SN5D |
136-174MHz
|
Narrow Band |
2-5 |
8-15 VDC |
* Meets latest EU RED requirements and Australian/New Zealand requirements including latest receiver performance metrics.
WARRANTY
* 1-year manufacturer's warranty
