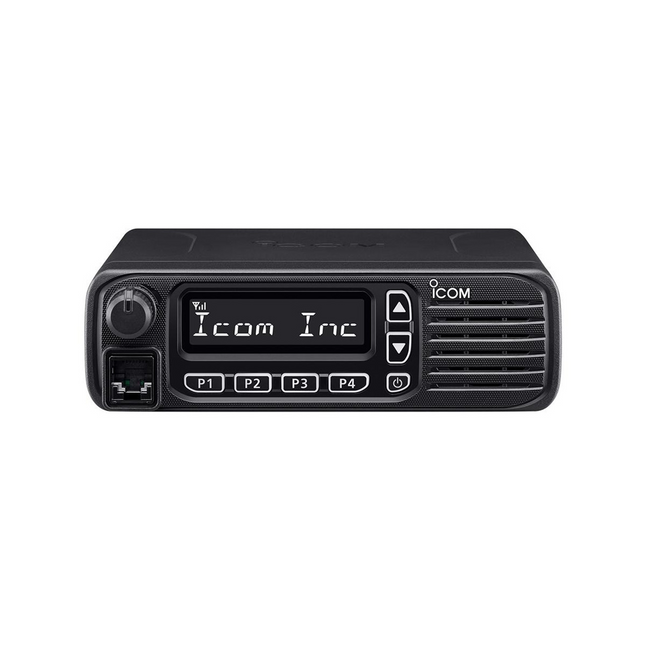

Icom F5130D VHF (136–174MHz) Entry Level VHF IDAS Mobile Two-Way Radio The Icom F5130D is a new generation, entry-level VHF IDAS mobile two-way radio utilizing a modern Icom design platform for enhanced functionality and visibility. This rugged, single-body mobile radio operates across the 136–174MHz frequency band with a powerful 50 Watts output. It supports simultaneous Analog FM and IDAS (NXDN) digital modes, enabling a flexible, phased migration from legacy analog systems. The Icom F5130D offers clear, streamlined operation with 128 channels across 8 zones, managed via a high-contrast, wide viewing angle black background LCD. Safety and security are key, with features including Lone Worker, Emergency Call, Digital Voice Scrambler, and compliance with MIL-STD-810 G. Its versatility is expanded with optional external control via D-SUB accessory cables and integration with external GPS receivers. Key Features Dual Mode Operation (Analog/IDAS Digital): Supports Analog FM, NXDN Conventional, and NXDN Type-D single-site trunking, allowing users to migrate to digital at their own pace. Powerful 50 Watt VHF Output: Delivers high transmit power across the 136–174MHz band for extended range and reliable mobile communication. High Contrast LCD Display: Features a black background, wide viewing angle LCD for improved visibility in various lighting conditions. MIL-STD-810 G Ruggedness: Compliant with military standards for shock, vibration, and temperature, ensuring durability in demanding mobile environments. Safety and Security Suite: Includes Lone Worker, Emergency Call, and Digital Voice Scrambler to protect personnel and confidential communications. Expandable Control Options: Supports optional D-SUB accessory cables for external control of PTT, channel selection, horn, and ignition switch. Enhanced System Functions: Features Over-the-Air Alias (OAA), Talk Back Timer, Polling Call, and optional Bluetooth capability. F5130D RADIO KIT INCLUDES: Mobile radio HM-152 Hand microphone DC power cables Mounting bracket kit Microphone hanger Benefits Seamless Digital Migration: The dual-mode feature allows the radio to communicate with both existing analog and new digital radios, facilitating a smooth, budget-conscious upgrade. Maximized Mobile Range: High 50W output power ensures reliable and robust signal coverage across a wide operational area. Flexible Vehicle Integration: Optional D-SUB accessory cables allow the radio to be integrated with various external vehicle controls for customized, safe operation. Guaranteed Durability: MIL-STD-810 G compliance ensures the radio withstands the harsh vibrations and temperature extremes of vehicle mounting. More Resources F5130D and F6130D Data Sheet F5130D and F6130D Accessories Warranty 2-year manufacturer's warranty on radio and 1-year warranty on accessories.

Read more less

Icom F6130D UHF (400–512MHz) Entry Level UHF IDAS Mobile Two-Way Radio The Icom F6130D is a new generation, entry-level UHF IDAS mobile two-way radio utilizing a modern Icom design platform for enhanced functionality and visibility. This rugged, single-body mobile radio operates across the 400–512MHz frequency band with a powerful 45 Watts output. It supports simultaneous Analog FM and IDAS (NXDN) digital modes, enabling a flexible, phased migration from legacy analog systems. The Icom F6130D offers clear, streamlined operation with 128 channels across 8 zones, managed via a high-contrast, wide viewing angle black background LCD with an 8-character alphanumeric display. Safety and security are key, with features including Lone Worker, Emergency Call, Digital Voice Scrambler, and compliance with MIL-STD-810 G. Its versatility is expanded with optional external control via D-SUB accessory cables and integration with external GPS receivers. Key Features Dual Mode Operation (Analog/IDAS Digital): Supports Analog FM, NXDN Conventional, and NXDN Type-D single-site trunking, allowing users to migrate to digital at their own pace. Powerful 45 Watt UHF Output: Delivers high transmit power across the 400–512MHz band for extended range and reliable mobile communication. High Contrast LCD Display: Features a black background, wide viewing angle LCD for improved visibility in various lighting conditions. MIL-STD-810 G Ruggedness: Compliant with military standards for shock, vibration, and temperature, ensuring durability in demanding mobile environments. Safety and Security Suite: Includes Lone Worker, Emergency Call, and Digital Voice Scrambler to protect personnel and confidential communications. Expandable Control Options: Supports optional D-SUB accessory cables for external control of PTT, channel selection, horn, and ignition switch. Enhanced System Functions: Features Over-the-Air Alias (OAA), Talk Back Timer, Polling Call, and optional Bluetooth capability. Kit Includes Mobile radio HM-152 Hand microphone DC power cables Mounting bracket kit Microphone hanger Benefits Seamless Digital Migration: The dual-mode feature allows the radio to communicate with both existing analog and new digital radios, facilitating a smooth, budget-conscious upgrade. Maximized Mobile Range: High 45W output power ensures reliable and robust signal coverage across a wide operational area. Flexible Vehicle Integration: Optional D-SUB accessory cables allow the radio to be integrated with various external vehicle controls for customized, safe operation. Guaranteed Durability: MIL-STD-810 G compliance ensures the radio withstands the harsh vibrations and temperature extremes of vehicle mounting. More Resources F6130D Data Sheet F6130D Accessories   Warranty 2-year manufacturer's warranty on radio and 1-year warranty on accessories.

Read more less

Icom F5220D VHF IDAS MULTI-SITE TRUNKING MOBILE TWO-WAY The Icom F5220D is a VHF (136-174MHz) IDAS digital trunking mobile two-way radio. The radio has 4W font mounted speaker which allows for clear channel announcement and communication.  The F5220D mobile radio is compatible with IDAS multi-site conventional and IDAS multi-site and single-site trunking. In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.  IC-F5220D FEATURES VHF (136-174MHz) 45 Watts Analog or Digital (NXDN) 128 channels (8 zones) 50 Watts MIL-STD-810 Channel announcement CTCSS/DTCS encoder/decoder Microphone hanger action programmable Power-on password function Talk around function Voting scan Nuisance delete function Time-out-timer, lock-out penalty IC-F5220D KIT INCLUDES Radio HM152- Hand Microphone DC power cable Mounting bracket kit Microphone hanger WARRANTY *2-year manufacturer's warranty on the radio and 1-year on the accessories. F5220D Data Sheet We are an authorized Icom Dealer.

Read more less

Icom F6220D  UHF IDAS MULTI-SITE TRUNKING MOBILE TWO-WAY The Icom F6220D is a UHF (400-470MHz) IDAS digital trunking mobile two-way radio. The radio has 4W font mounted speaker which allows for clear channel announcement and communication.  The F6220D mobile radio is compatible with IDAS multi-site conventional and IDAS multi-site and single-site trunking. In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.  IC-F6220D FEATURES UHF (400-512MHz) 45 Watts Analog or Digital (NXDN) 128 channels (8 zones) 45 Watts MIL-STD-810 Channel announcement CTCSS/DTCS encoder/decoder Microphone hanger action programmable Power-on password function Talk around function Voting scan Nuisance delete function Time-out-timer, lock-out penalty IC-F6220D KIT INCLUDES Radio HM152- Hand Microphone DC power cable Mounting bracket kit Microphone hanger WARRANTY *2-year manufacturer's warranty on the radio and 1-year on the accessories. F6220D Data Sheet We are an authorized Icom Dealer.

Read more less

Icom F5330D COMPACT VHF BLACK BOX IDAS MOBILE TWO-WAY RADIO WITH COMMANDMIC The Icom F5330D is a VHF (136-174MHz) digital mobile two-way radio. The F5330D mobile radio is a small form factor and has an ethernet port for networking possibilities. With the ethernet port, the F5330D/F6330D series offers a unique installation solution that allows the main unit (RF unit) and remote-controller (PoE PD, Power over Ethernet Powered Device) to be connected using this Ethernet cable, and can be extended up to 100 m, 328 ft with an inexpensive Cat 5e LAN cable. The remote controller uses a Commandmic with excellent operability and a high contrast black LCD. IC-F5330D FEATURES VHF (136-174MHz) 50 Watts Analog or Digital (NXDN) 128 channels (8 zones) Commandmic is powered from the main unit through an Ethernet cable * Extendable up to 100m, 328 ft. (Cat 5e LAN cable user supplied) MIL-STD-810 G shock, vibration, temperature and more IPX4 water splash resistance for the Commandmic DTMF autodial memories capability Scan Functions Digital voice scrambler Emergency call and Lone worker Remote monitor (RX) Radio Kill, Stun and Revive (RX) IC-F5330D KIT INCLUDES Radio CommandMic hand microphone 20.3 ft ethernet cable DC power cable Mounting bracket kit Microphone hanger WARRANTY *2-year manufacturer's warranty on the radio and 1-year on the accessories. F5330D Data Sheet We are an authorized Icom Dealer.

Read more less

Icom F6330D COMPACT UHF BLACK BOX IDAS MOBILE TWO-WAY RADIO WITH COMMANDMIC The Icom F6330D is a UHF (400-512MHz) digital mobile two-way radio. The F6330D mobile radio is a small form factor and has an ethernet port for networking possibilities. With the ethernet port, the F5330D/F6330D series offers a unique installation solution that allows the main unit (RF unit) and remote-controller (PoE PD, Power over Ethernet Powered Device) to be connected using this Ethernet cable, and can be extended up to 100 m, 328 ft with an inexpensive Cat 5e LAN cable. The remote controller uses a Commandmic with excellent operability and a high contrast black LCD. IC-F6330D FEATURES UHF (400-512MHz,) 45 Watts Analog or Digital (NXDN) 128 channels (8 zones) Commandmic is powered from the main unit through an Ethernet cable * Extendable up to 100m, 328 ft. (Cat 5e LAN cable user supplied) MIL-STD-810 G shock, vibration, temperature and more IPX4 water splash resistance for the Commandmic DTMF autodial memories capability Scan Functions Digital voice scrambler Emergency call and Lone worker Remote monitor (RX) Radio Kill, Stun and Revive (RX) IC-F6330D KIT INCLUDES Radio CommandMic hand microphone 20.3 ft ethernet cable DC power cable Mounting bracket kit Microphone hanger WARRANTY *2-year manufacturer's warranty on the radio and 1-year on the accessories. F6330D Data Sheet We are an authorized Icom Dealer.

Read more less

Icom F5400D VHF DIGITAL MOBILE TWO-WAY RADIO The Icom F5400D is a mobile two-way radio that works in the VHF band (136-174MHz). The radio comes with a LCD color display and has a jet water resistance and dust-protection rating of IP55. The F5400D is capable of both analog and digital (NXDN) with basic LTR.  IC-F5400D KKEY FEATURES: VHF (136-174MHz) Analog and Digital (NXDN) Basic LTR 1024 Channels (128 Zones) High Resolution Color Display 50 Watts of Power MIL-STD-810 Waterproof Rating (IP55) GPS Bluetooth Built-in VOX Intuitive user interface High-resolution color LCD Digital voice recorder – record up to 500 hours with 32GB microSDcard Safety features: emergency button, lone worker function, andpower OFF emergency function AquaQuake Audio equalizer IC-F5400D KIT INCLUDES: Radio HM220- Heavy Duty Microphone DC Power Cable Mounting Bracket Kit Microphone Hanger WARRANTY *3-year manufacturer's warranty on the radio and 1-year on the accessories. F5400D Data Sheet

Read more less

Icom F6400D UHF DIGITAL MOBILE TWO-WAY RADIO The Icom F6400D is a mobile two-way radio that works in the UHF band. The radio comes in two split styles: F6400D 56 (380-470MHz) with no Bluetooth and F6400D 71 (450-512MHz). The radio comes with a color display and has a jet water resistance and dust-protection rating of IP55. The F6400D is capable of both analog and digital (NXDN) with basic LTR.  IC-F6400D KEY FEATURES: UHF Analog and Digital (NXDN) Basic LTR 1024 Channels (128 Zones) Color display 45 Watts of Power MIL-STD-810 Waterproof Rating (IP55) GPS Bluetooth Built-in (not for F6400D 56) VOX Intuitive user interface Digital voice recorder – record up to 500 hours with 32GB microSDcard Safety features: emergency button, lone worker function, andpower OFF emergency function AquaQuake Audio equalizer IC-F6400D KIT INCLUDES: Radio HM220- Heavy Duty Microphone DC Power Cable Mounting Bracket Kit Microphone Hanger WARRANTY *3-year manufacturer's warranty on the radio and 1-year on the accessories. F6400D Data Sheet

Read more less

Icom F5122DD VHF DATA TRANSCEIVER The Icom F5122DD is a VHF (136-174MHz) Data Transceiver. This radio uses 4-level FSK modulation suitable for real-time data monitoring allowing for fast data transfer.  With 25W and a BNC antenna connector, the F5122DD easily sends data/information over a radio frequency. This modem is an ideal alternative for areas with limited cellphone or internet connection, such as vehicle management for farming and airports,  traffic monitoring for roads/highways, or remote system management for utilities (water works/electricity meters). IC-F5122DD KEY FEATURES: VHF (136-174MHz) 25W 9.6k/4.8kbps 9600bps (at 12.5kHz) and 4800bps (at 6.25kHz) data modeprogrammable  RS-232 and RS-232 + Ethernet versions 4-level FSK modulation BNC antenna connector Individual, group and all calls Data encryption function (500 codes) IC-F5122DD KIT INCLUDES: Radio DC Power Cable Mounting Bracket Kit WARRANTY *2-year manufacturer's warranty on the radio. F5122DD Data Sheet
